SKU: TA.1416.Z-EU

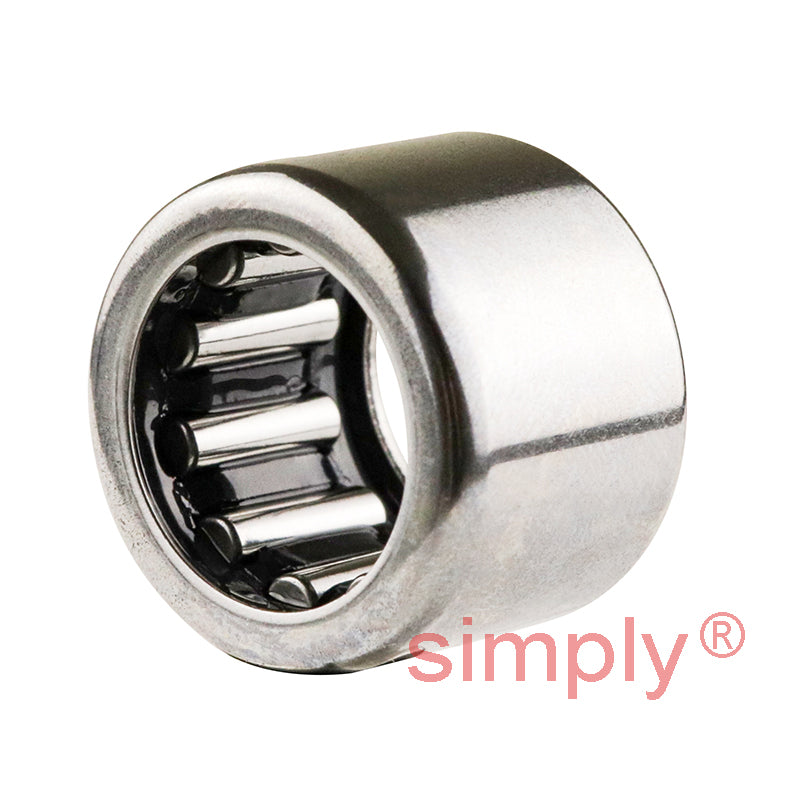

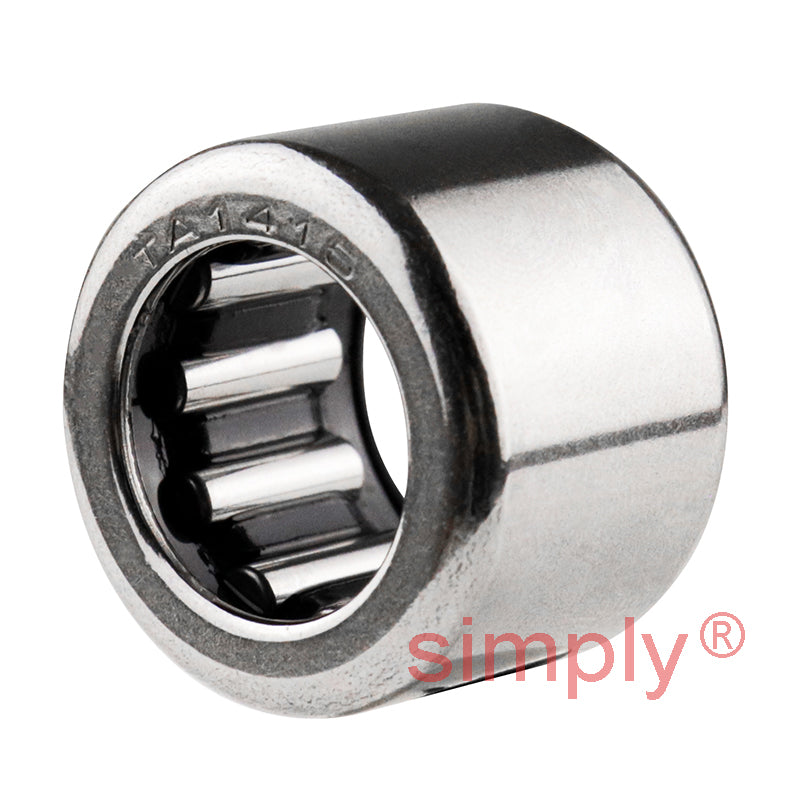

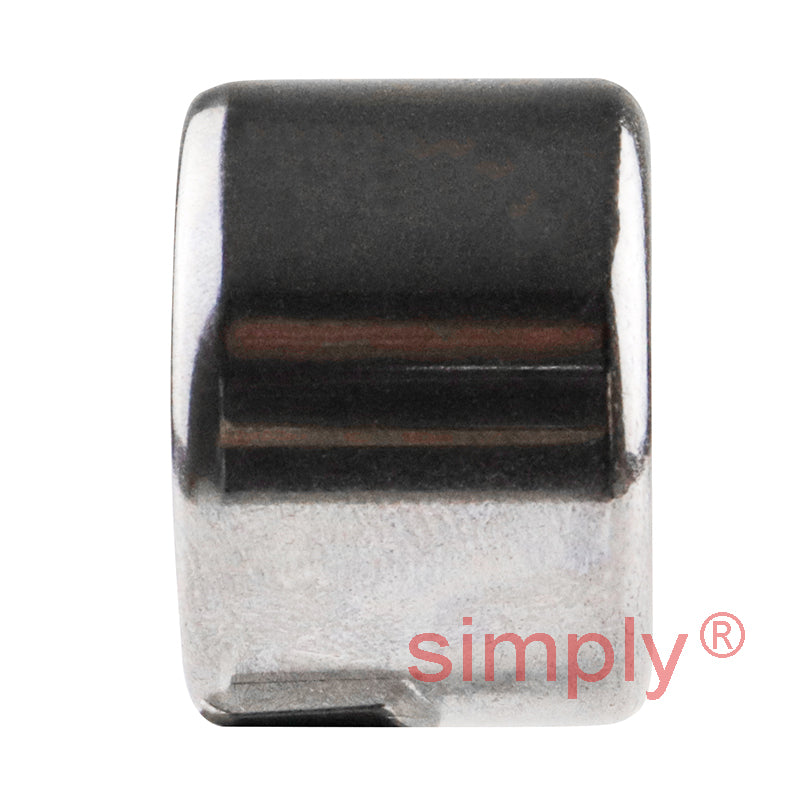

Premier Budget TA1416Z Needle Roller Bearing Open End Type 14x22x16mm
Premier Budget TA1416Z Needle Roller Bearing Open End Type 14x22x16mm
Regular price
$3.76
ex VAT
Regular price
Sale price
$3.76
ex VAT
Equivalent to: HMK1416
In stock
Price Break
10+
$3.35
19+
$3.16
29+
$3.12
39+
$3.08
49+
$3.05
74+
$3.01
99+
$2.82
199+
$2.78
249+
$2.74
499+
$2.71
999+
$2.63
Couldn't load pickup availability
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK1416
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 14mm
- Outside Diameter:
- 22mm
- Width:
- 16mm
Technical
Technical
| Fw | 14mm |
|---|---|
| D | 22mm |
| C | 16mm |
| Dynamic load | 10500N |
| Static load | 12000N |
| Inner race | IRT1016-2 |
| Weight | 18.4g |
