SKU: TA.1420.Z-EU

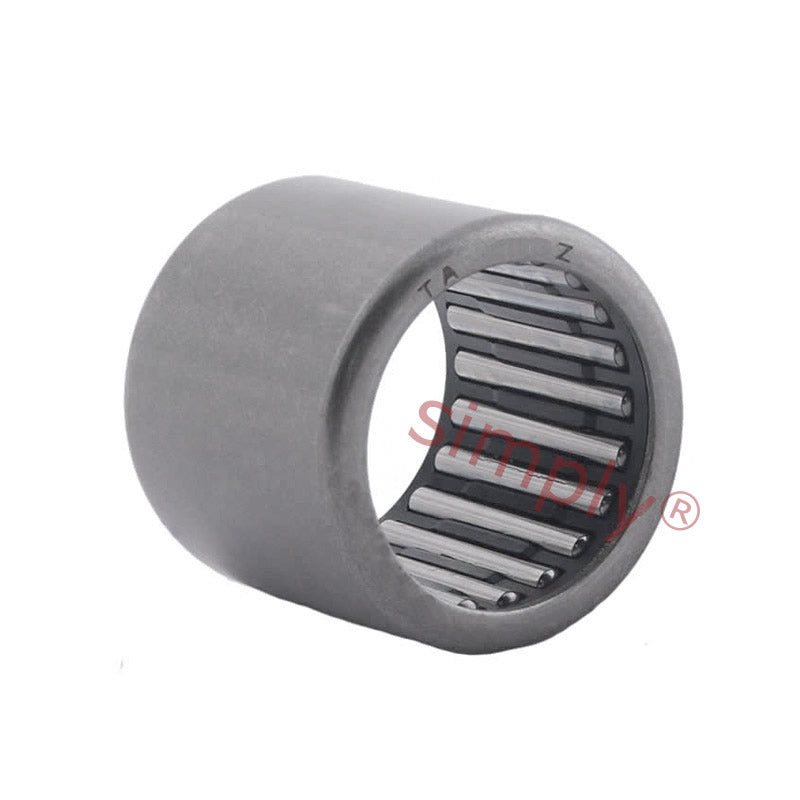

Premier Budget TA1420Z Needle Roller Bearing Open End Type 14x22x20mm
Premier Budget TA1420Z Needle Roller Bearing Open End Type 14x22x20mm
Regular price
$11.70
ex VAT
Regular price
Sale price
$11.70
ex VAT
Equivalent to: HMK1420
In stock
Price Break
10+
$10.41
19+
$9.83
29+
$9.71
39+
$9.59
49+
$9.48
74+
$9.36
99+
$8.78
199+
$8.66
249+
$8.54
499+
$8.42
999+
$8.19
Couldn't load pickup availability
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK1420
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 14mm
- Outside Diameter:
- 22mm
- Width:
- 20mm
Technical
Technical
| Fw | 14mm |
|---|---|
| D | 22mm |
| C | 20mm |
| Dynamic load | 13900N |
| Static load | 17200N |
| Inner race | IRT1020-2 |
| Weight | 23g |
