SKU: TA.1725.Z-EU

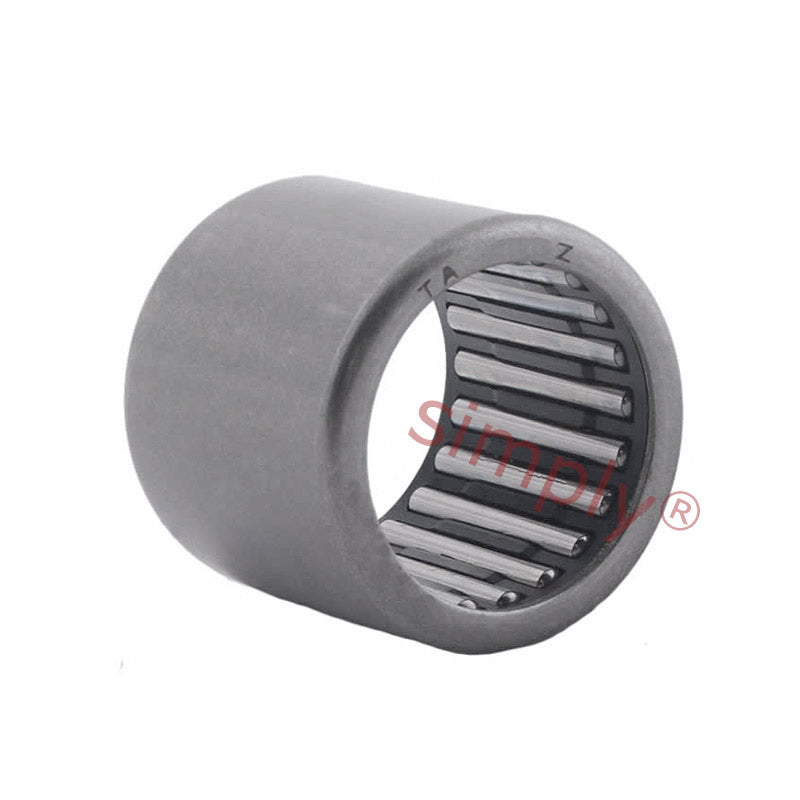

Premier Budget TA1725Z Needle Roller Bearing Open End Type 17x24x25mm
Premier Budget TA1725Z Needle Roller Bearing Open End Type 17x24x25mm
Regular price
$10.82
ex VAT
Regular price
Sale price
$10.82
ex VAT
Equivalent to: HMK1725B
In stock
Price Break
10+
$9.63
19+
$9.09
29+
$8.98
39+
$8.87
49+
$8.76
74+
$8.66
99+
$8.12
199+
$8.01
249+
$7.90
499+
$7.79
999+
$7.57
Couldn't load pickup availability
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK1725B
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 24mm
- Width:
- 25mm
Technical
Technical
| Fw | 17mm |
|---|---|
| D | 24mm |
| C | 25mm |
| Dynamic load | 17900N |
| Static load | 28100N |
| Inner race | IRT1225-2 |
| Weight | 29g |
