SKU: TA.1820.Z-EU

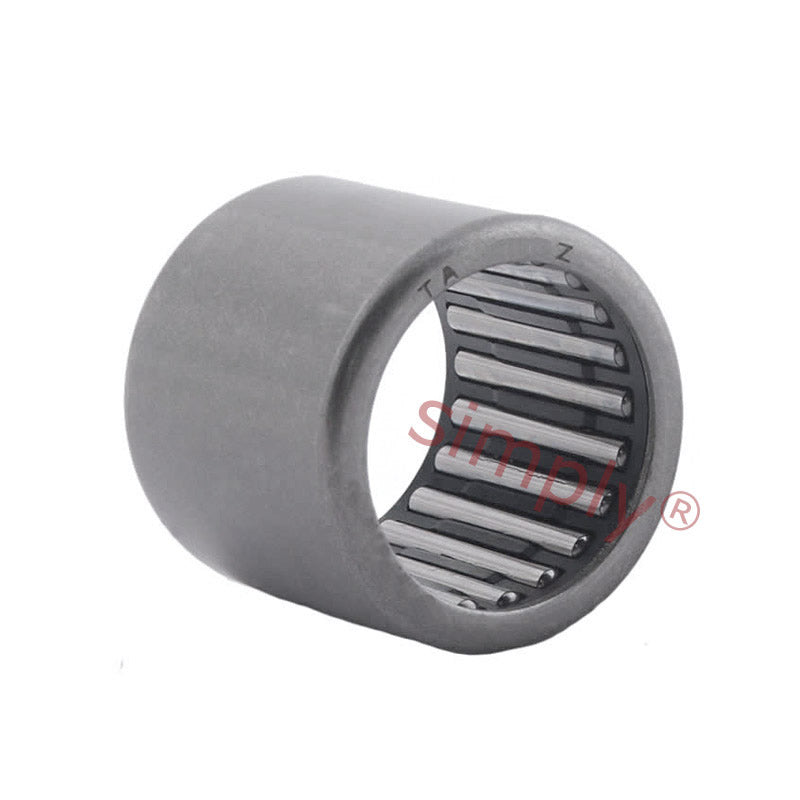

Premier Budget TA1820Z Needle Roller Bearing Open End Type 18x25x20mm
Premier Budget TA1820Z Needle Roller Bearing Open End Type 18x25x20mm
Regular price
$10.82
ex VAT
Regular price
Sale price
$10.82
ex VAT
Equivalent to: HMK1820
In stock
Price Break
10+
$9.63
19+
$9.09
29+
$8.98
39+
$8.87
49+
$8.76
74+
$8.66
99+
$8.12
199+
$8.01
249+
$7.90
499+
$7.79
999+
$7.57
Couldn't load pickup availability
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK1820
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 25mm
- Width:
- 20mm
Technical
Technical
| Fw | 18mm |
|---|---|
| D | 25mm |
| C | 20mm |
| Dynamic load | 14500N |
| Static load | 21800N |
| Inner race | IRT1520 |
| Weight | 24.5g |
