SKU: TA.2530.Z-EU

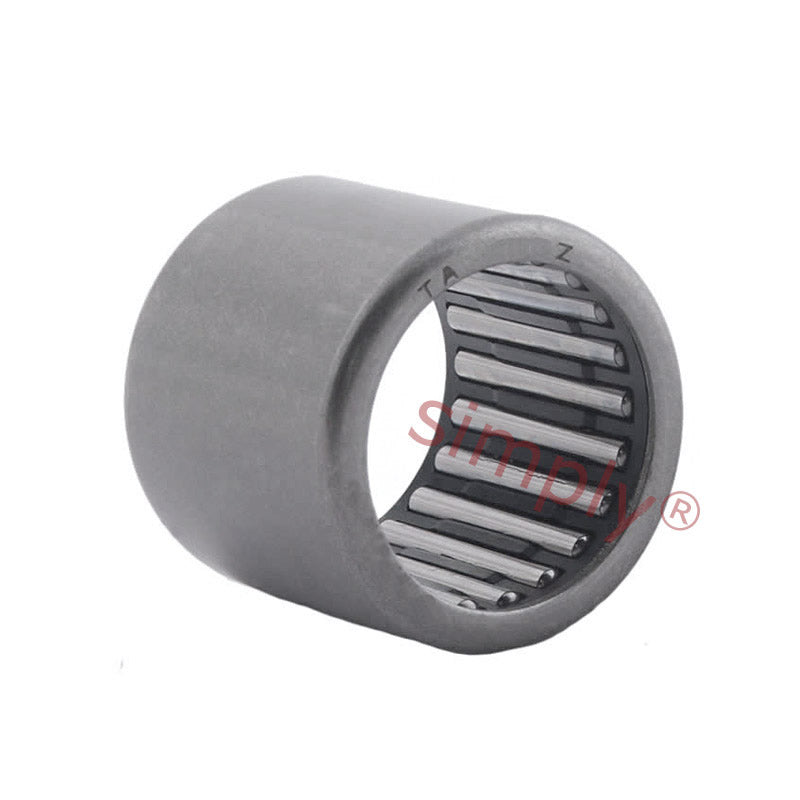

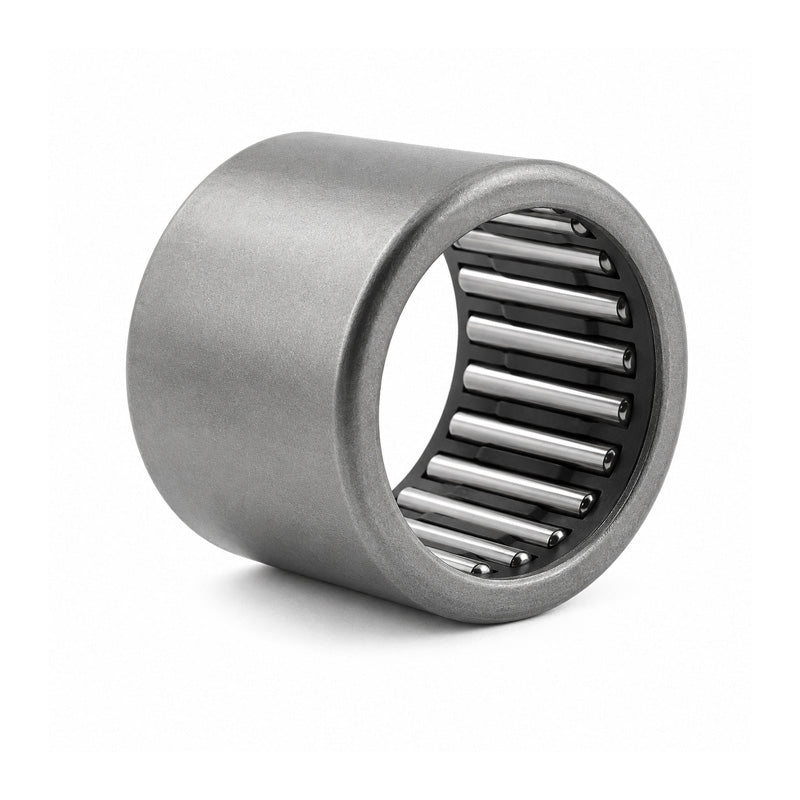

Premier Budget TA2530Z Needle Roller Bearing Open End Type 25x33x30mm
Premier Budget TA2530Z Needle Roller Bearing Open End Type 25x33x30mm
Regular price
$10.89
ex VAT
Regular price
Sale price
$10.89
ex VAT
Equivalent to: HMK2530
In stock
Price Break
10+
$9.69
19+
$9.15
29+
$9.04
39+
$8.93
49+
$8.82
74+
$8.71
99+
$8.17
199+
$8.06
249+
$7.95
499+
$7.84
999+
$7.62
Couldn't load pickup availability
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK2530
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 33mm
- Width:
- 30mm
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 33mm |
| C | 30mm |
| Dynamic load | 29100N |
| Static load | 52000N |
| Inner race | IRT2030-1 |
| Weight | 54.5g |
