SKU: TA.2620.Z-EU

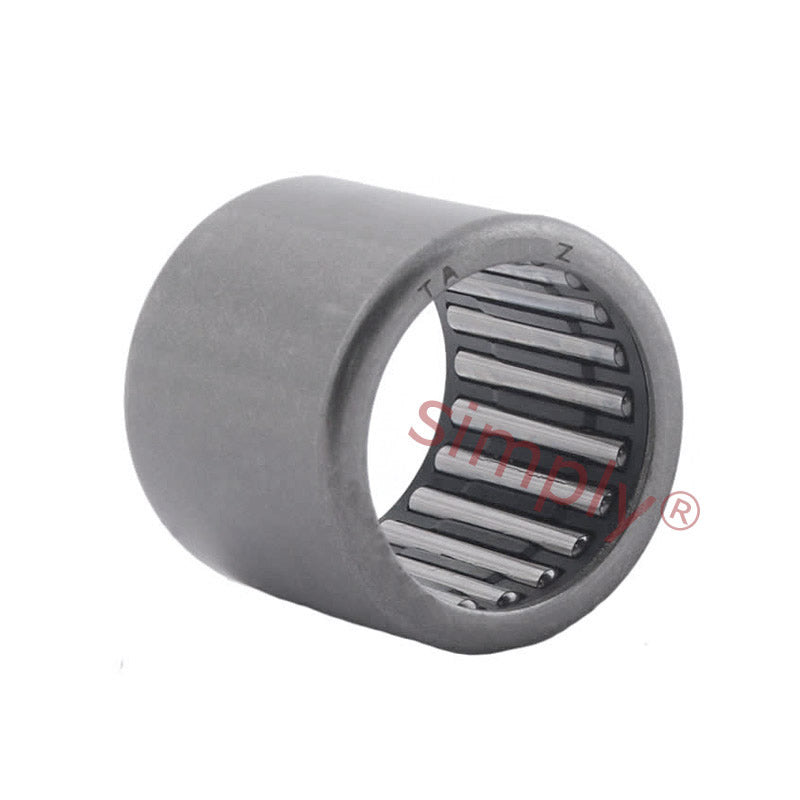

Premier Budget TA2620Z Needle Roller Bearing Open End Type 26x34x20mm
Premier Budget TA2620Z Needle Roller Bearing Open End Type 26x34x20mm
Regular price
$11.89
ex VAT
Regular price
Sale price
$11.89
ex VAT
Equivalent to: HMK2620
In stock
Price Break
10+
$10.58
19+
$9.99
29+
$9.87
39+
$9.75
49+
$9.63
74+
$9.51
99+
$8.92
199+
$8.80
249+
$8.68
499+
$8.56
999+
$8.32
Couldn't load pickup availability
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK2620
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 26mm
- Outside Diameter:
- 34mm
- Width:
- 20mm
Technical
Technical
| Fw | 26mm |
|---|---|
| D | 34mm |
| C | 20mm |
| Dynamic load | 20100N |
| Static load | 32800N |
| Inner race | IRT2220 |
| Weight | 38g |
