SKU: TA.2930.Z

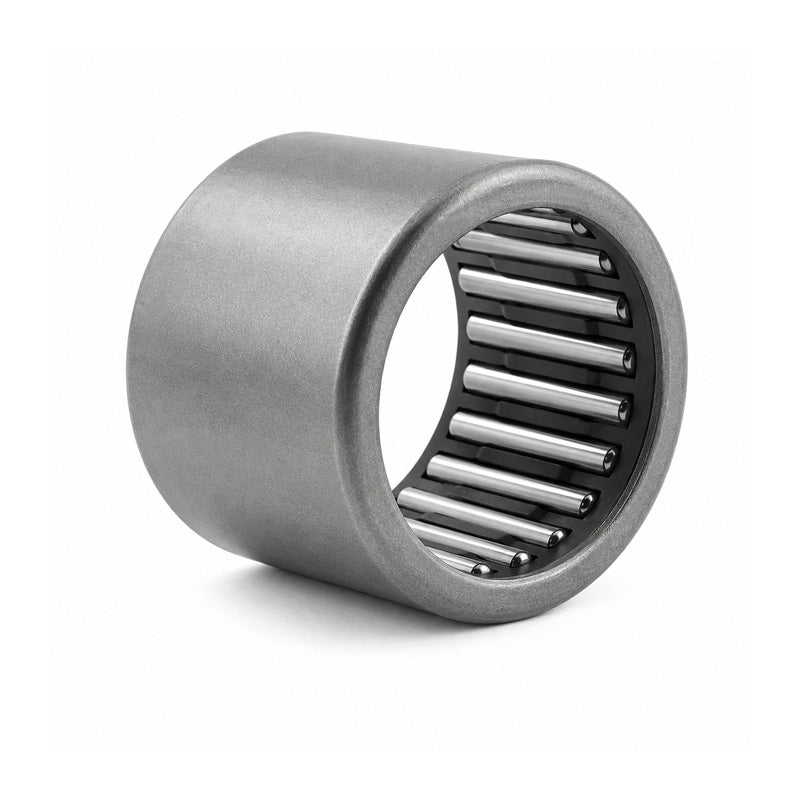

IKO TA2930Z Needle Roller Bearing Open End Type 29x38x30mm
IKO TA2930Z Needle Roller Bearing Open End Type 29x38x30mm
Regular price
$9.12
ex VAT
Regular price
Sale price
$9.12
ex VAT
Equivalent to: HMK2930
In stock
Price Break
10+
$8.12
19+
$7.66
29+
$7.57
39+
$7.48
49+
$7.39
74+
$7.30
99+
$6.84
199+
$6.75
249+
$6.66
499+
$6.57
999+
$6.38
Couldn't load pickup availability
Description
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK2930
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 29mm
- Outside Diameter:
- 38mm
- Width:
- 30mm
Technical
Technical
| Fw | 29mm |
|---|---|
| D | 38mm |
| C | 30mm |
| Dynamic load | 34200 N |
| Static load | 60300 N |
| Inner race | IRT2530 |
| Weight | 70 g |
