SKU: TA.3015.Z-EU

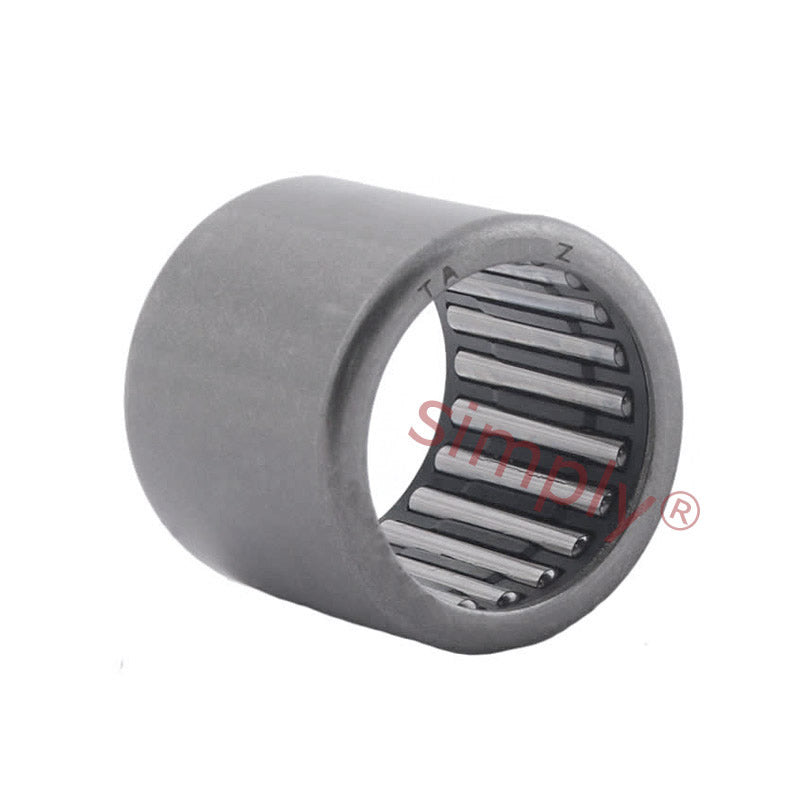

Premier Budget TA3015Z Needle Roller Bearing Open End Type 30x40x15mm
Premier Budget TA3015Z Needle Roller Bearing Open End Type 30x40x15mm
Regular price
$11.94
ex VAT
Regular price
Sale price
$11.94
ex VAT
Equivalent to: HMK3015
In stock
Price Break
10+
$10.63
19+
$10.03
29+
$9.91
39+
$9.79
49+
$9.67
74+
$9.55
99+
$8.96
199+
$8.84
249+
$8.72
499+
$8.60
999+
$8.36
Couldn't load pickup availability
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK3015
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 40mm
- Width:
- 15mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 40mm |
| C | 15mm |
| Dynamic load | 16800N |
| Static load | 22400N |
| Inner race | IRT2515-1 |
| Weight | 42g |
