SKU: TA.3820.Z-EU

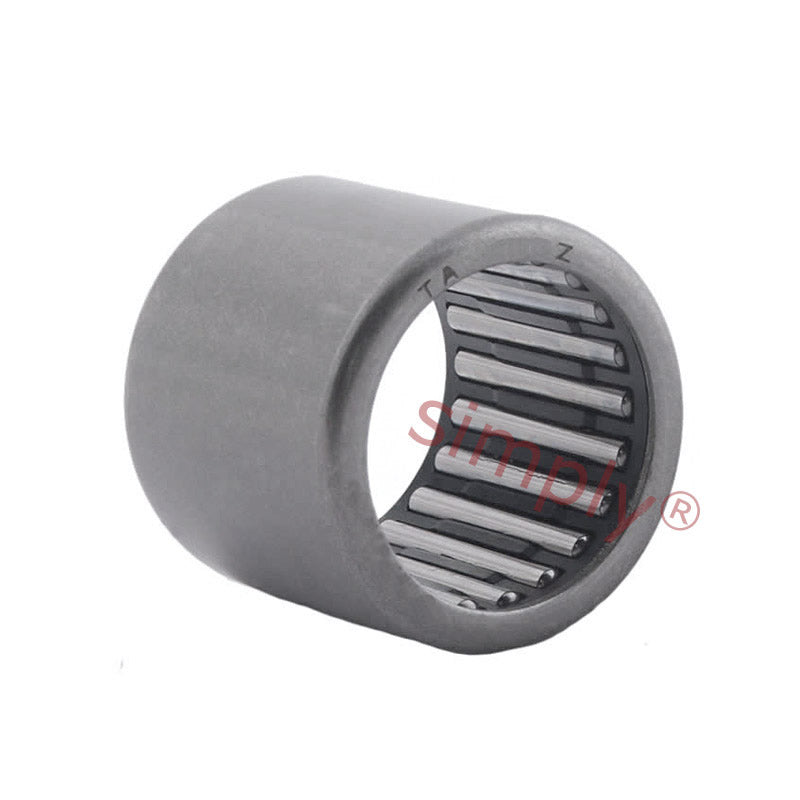

Premier Budget TA3820Z Needle Roller Bearing Open End Type 38x48x20mm
Premier Budget TA3820Z Needle Roller Bearing Open End Type 38x48x20mm
Regular price
$12.59
ex VAT
Regular price
Sale price
$12.59
ex VAT
Equivalent to: HMK3820
In stock
Price Break
10+
$11.21
19+
$10.58
29+
$10.45
39+
$10.32
49+
$10.20
74+
$10.07
99+
$9.44
199+
$9.32
249+
$9.19
499+
$9.06
999+
$8.81
Couldn't load pickup availability
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK3820
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38mm
- Outside Diameter:
- 48mm
- Width:
- 20mm
Technical
Technical
| Fw | 38mm |
|---|---|
| D | 48mm |
| C | 20mm |
| Dynamic load | 27700N |
| Static load | 45600N |
| Inner race | IRT3220-1 |
| Weight | 65.5g |
