SKU: TA.4520.Z-EU

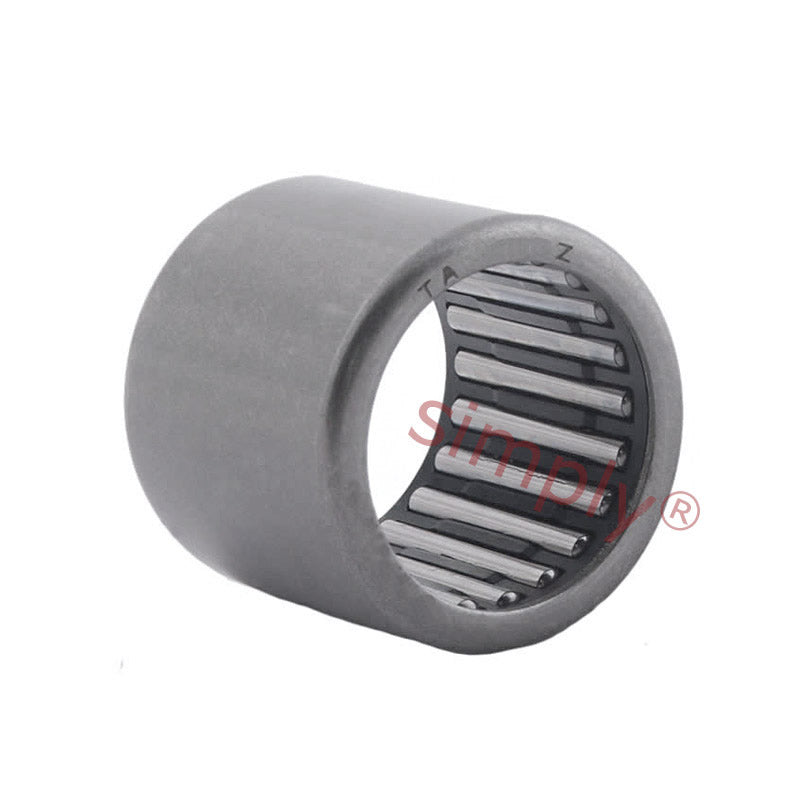

Premier Budget TA4520Z Needle Roller Bearing Open End Type 45x55x20mm
Premier Budget TA4520Z Needle Roller Bearing Open End Type 45x55x20mm
Regular price
$13.44
ex VAT
Regular price
Sale price
$13.44
ex VAT
Equivalent to: HMK4520
In stock
Price Break
10+
$11.96
19+
$11.29
29+
$11.16
39+
$11.02
49+
$10.89
74+
$10.75
99+
$10.08
199+
$9.95
249+
$9.81
499+
$9.68
999+
$9.41
Couldn't load pickup availability
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK4520
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 55mm
- Width:
- 20mm
Technical
Technical
| Fw | 45mm |
|---|---|
| D | 55mm |
| C | 20mm |
| Dynamic load | 30600N |
| Static load | 54600N |
| Inner race | IRT4020 |
| Weight | 144g |
