SKU: TA.4525.Z-EU

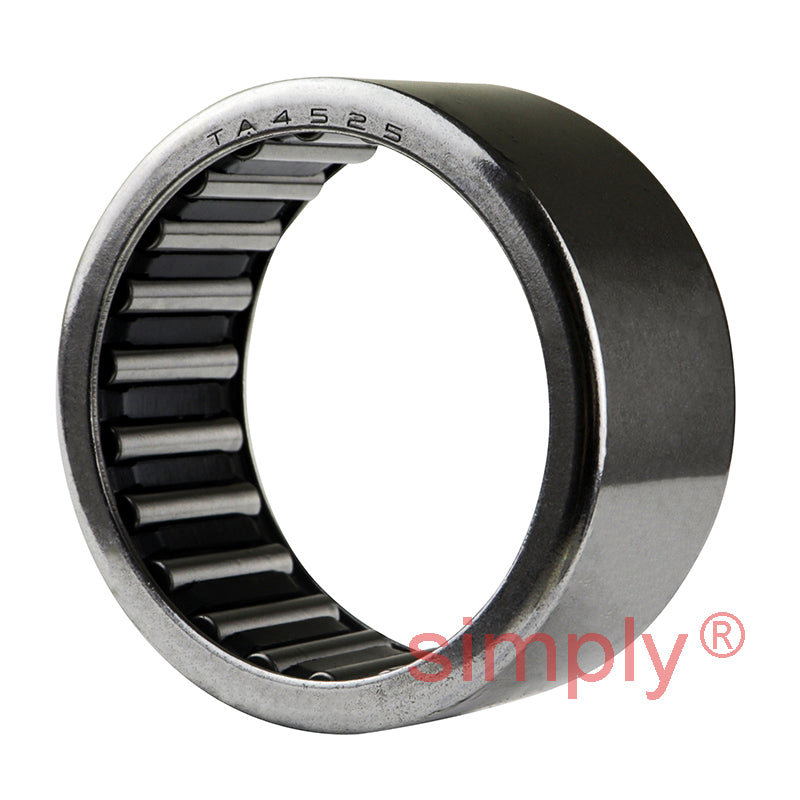

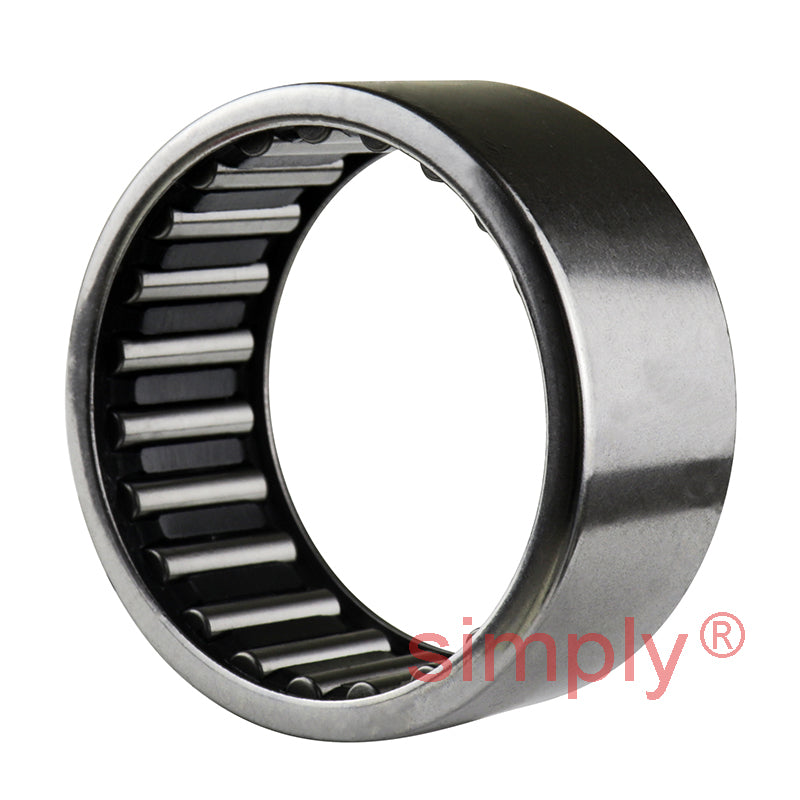

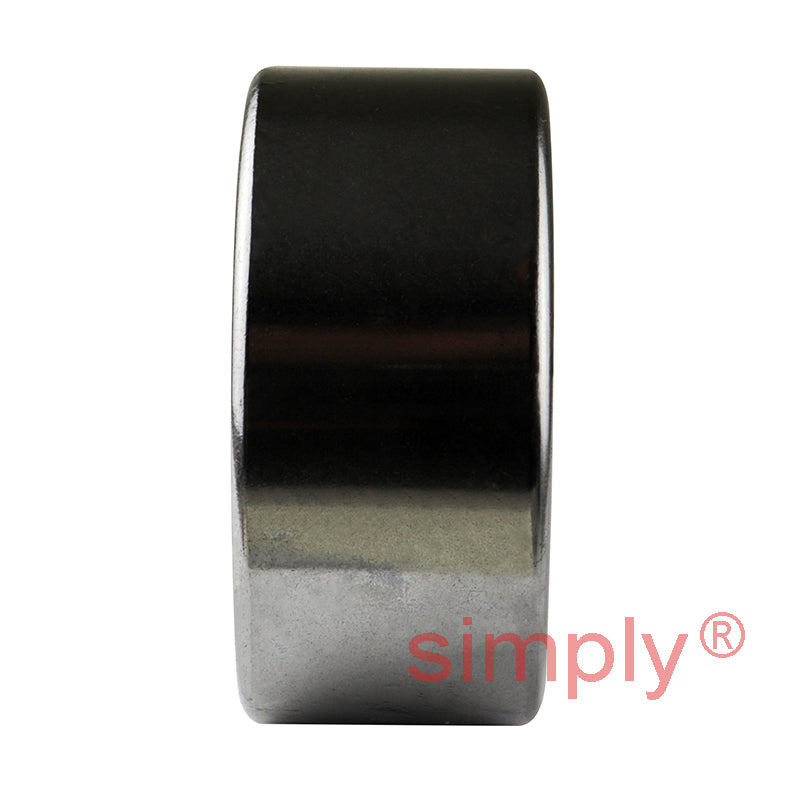

Premier Budget TA4525Z Needle Roller Bearing Open End Type 45x55x25mm
Premier Budget TA4525Z Needle Roller Bearing Open End Type 45x55x25mm
Regular price
$13.66
ex VAT
Regular price
Sale price
$13.66
ex VAT
Equivalent to: HMK4525
In stock
Price Break
10+
$12.16
19+
$11.47
29+
$11.34
39+
$11.20
49+
$11.06
74+
$10.93
99+
$10.25
199+
$10.11
249+
$9.97
499+
$9.84
999+
$9.56
Couldn't load pickup availability
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK4525
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 55mm
- Width:
- 25mm
Technical
Technical
| Fw | 45mm |
|---|---|
| D | 55mm |
| C | 25mm |
| Dynamic load | 39400N |
| Static load | 75600N |
| Inner race | IRT4025 |
| Weight | 77g |
