SKU: TA.6040.Z

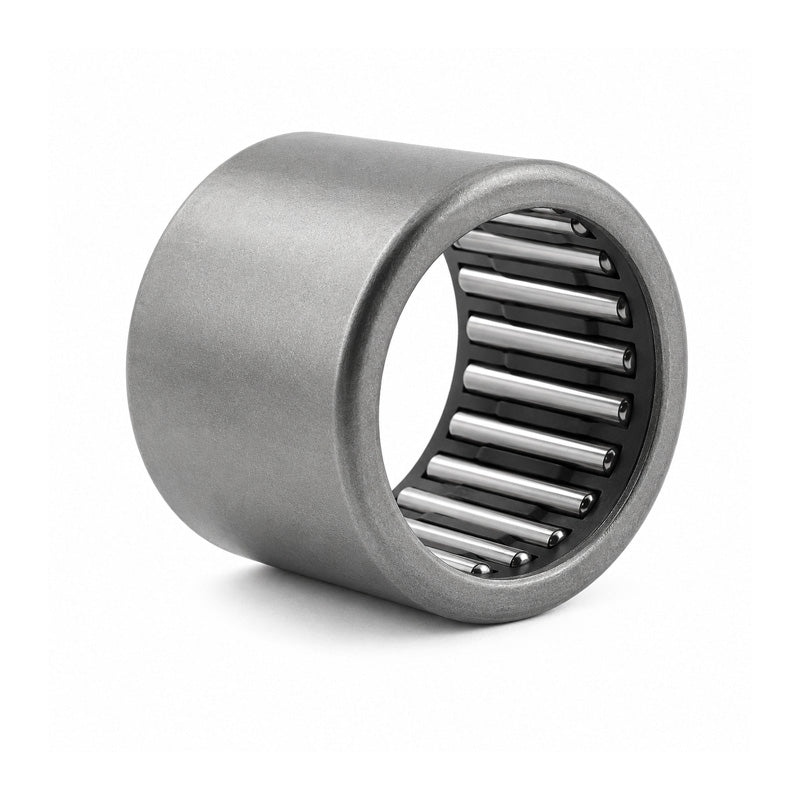

IKO TA6040Z Needle Roller Bearing Open End Type 60x72x40mm
IKO TA6040Z Needle Roller Bearing Open End Type 60x72x40mm
Regular price
$25.41
ex VAT
Regular price
Sale price
$25.41
ex VAT
Equivalent to: HMK6040
In stock
Price Break
10+
$22.61
19+
$21.34
29+
$21.09
39+
$20.84
49+
$20.58
74+
$20.33
99+
$19.06
199+
$18.80
249+
$18.55
499+
$18.30
999+
$17.79
Couldn't load pickup availability
Description
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK6040
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 72mm
- Width:
- 40mm
Technical
Technical
| Fw | 60mm |
|---|---|
| D | 72mm |
| C | 40mm |
| Dynamic load | 85700 N |
| Static load | 193000 N |
| Inner race | IRT5040 |
| Weight | 250 g |
