SKU: TA.912.Z-EU

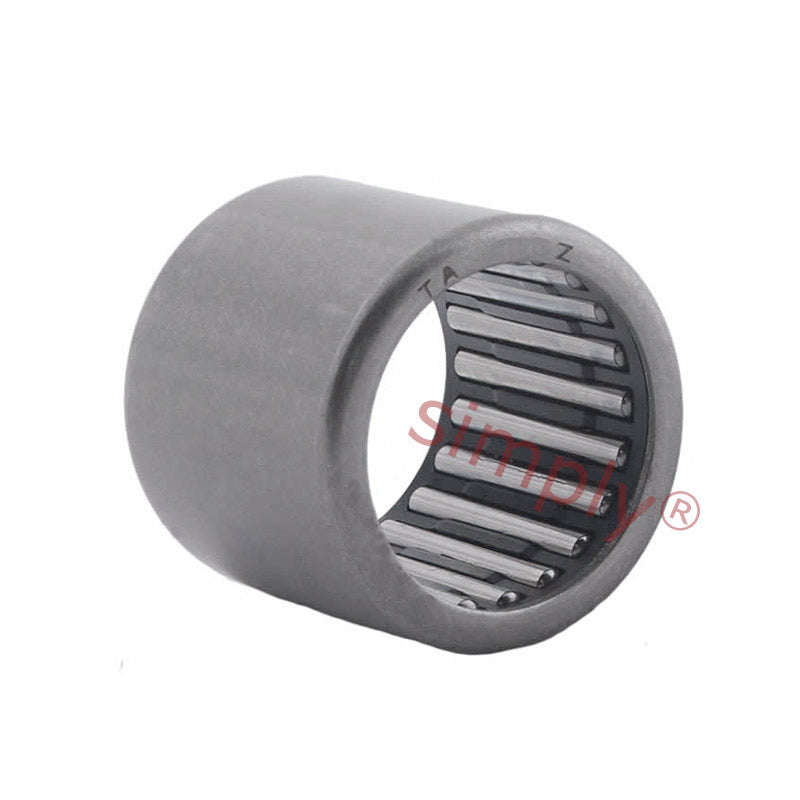

Premier Budget TA912Z Needle Roller Bearing Open End Type 9x16x12mm
Premier Budget TA912Z Needle Roller Bearing Open End Type 9x16x12mm
Regular price
$9.44
ex VAT
Regular price
Sale price
$9.44
ex VAT
Equivalent to: HMK0912 HMK912
In stock
Price Break
10+
$8.40
19+
$7.93
29+
$7.84
39+
$7.74
49+
$7.65
74+
$7.55
99+
$7.08
199+
$6.99
249+
$6.89
499+
$6.80
999+
$6.61
Couldn't load pickup availability
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK0912 HMK912
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 9mm
- Outside Diameter:
- 16mm
- Width:
- 12mm
Technical
Technical
| Fw | 9mm |
|---|---|
| D | 16mm |
| C | 12mm |
| Dynamic load | 5140N |
| Static load | 4880N |
| Weight | 8.7g |
