SKU: TBS-S-12B-27

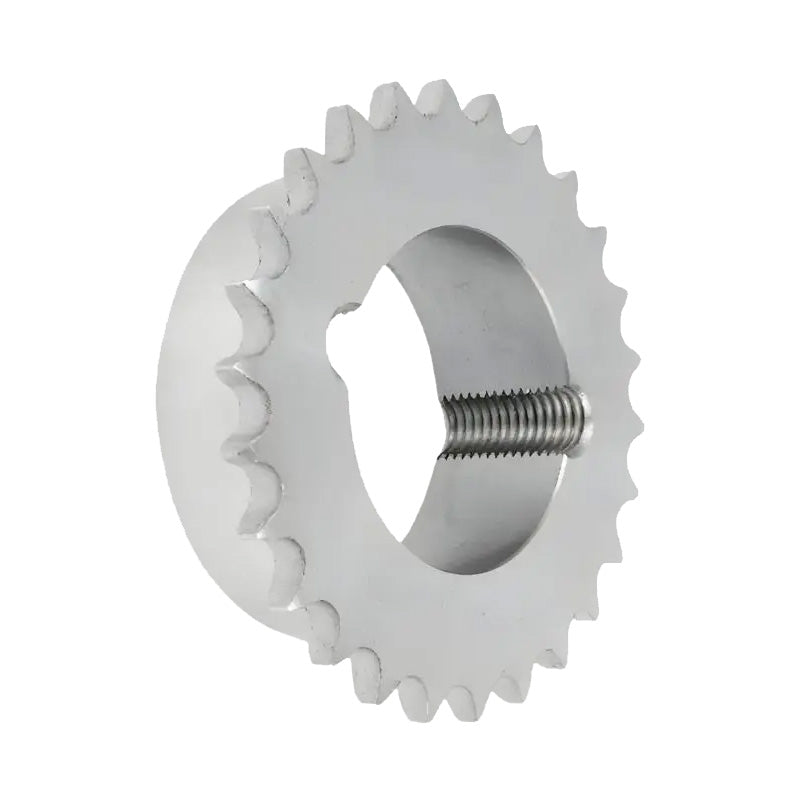

27 Tooth 12B Simplex Sprocket Tapered Locking Bush Type for 3/4 inch Pitch Chain (Bush not Incl.)
27 Tooth 12B Simplex Sprocket Tapered Locking Bush Type for 3/4 inch Pitch Chain (Bush not Incl.)
Regular price
$69.27
ex VAT
Regular price
Sale price
$69.27
ex VAT
Equivalent to: TS61-27 12B1 TS61-27 61-27
In stock
Price Break
10+
$61.65
19+
$58.19
29+
$57.49
39+
$56.80
49+
$56.11
74+
$55.42
99+
$51.95
199+
$51.26
249+
$50.57
499+
$49.87
999+
$48.49
Couldn't load pickup availability
Description
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: TS61-27 12B1 TS61-27 61-27
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: TS61-27 12B1 TS61-27 61-27
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 27
- Pitch:
- 19.05mm = 0.75 (3/4) inch
- Item Type:
- BS European Standard
Technical
Technical

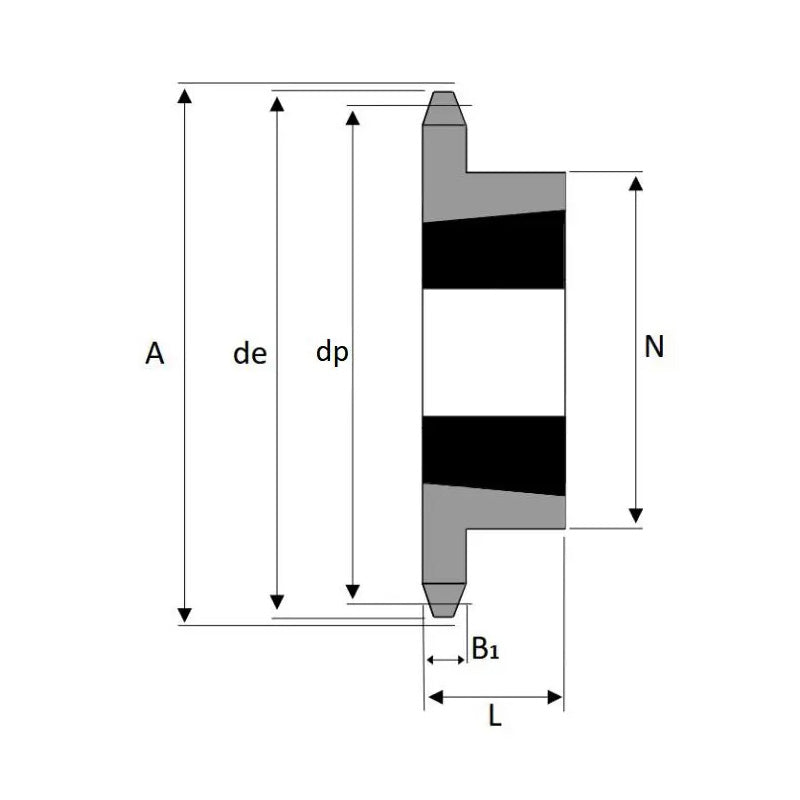

| No. of Teeth | 27 |
|---|---|
| Pitch Diameter dp | 164.09mm |
| Outer Diameter de | 172mm |
| Diameter Over Chain A | 180mm |
| Hub Diameter N | 108mm |
| Tooth Width B1 | 11.1mm |
| Bore Length L | 44.5mm |
| Taper Bush Series | <a href="advanced_search_result.php?&keywords=2517+taperlock">2517<span style="color:blue"> Click Here</span></a> |
| Weight | 2.247 kg |
