SKU: TS-N1/2-SE27-DUN

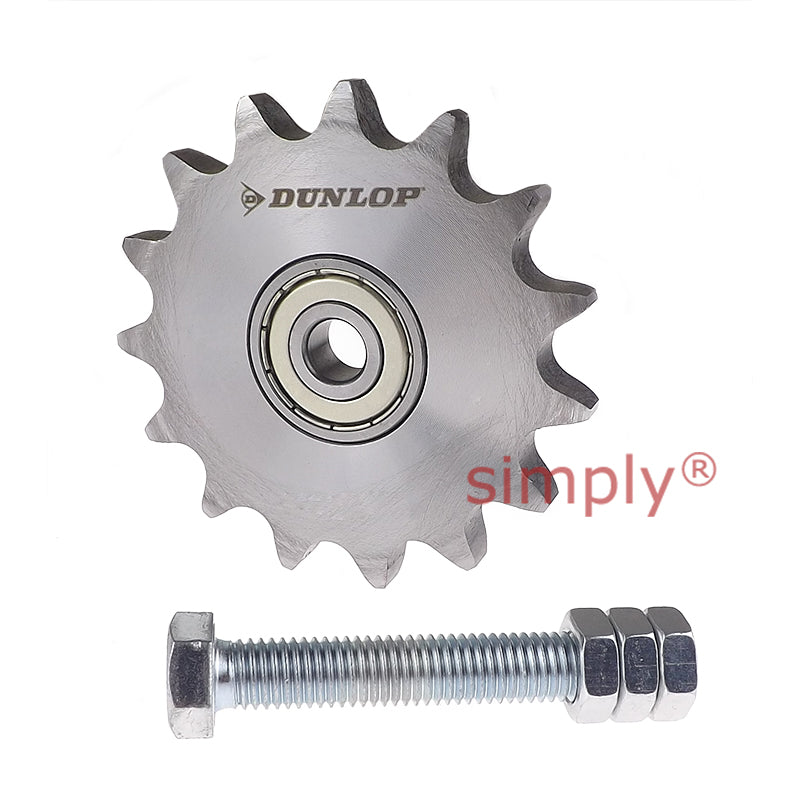

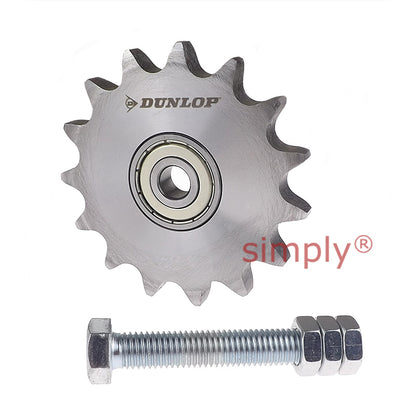

Dunlop 08BX15T N1/2 inch Sprocket for SE27 Tension Arm
Dunlop 08BX15T N1/2 inch Sprocket for SE27 Tension Arm
Regular price
$18.81
ex VAT
Regular price
Sale price
$18.81
ex VAT
In stock
Price Break
10+
$16.74
19+
$15.80
29+
$15.61
39+
$15.42
49+
$15.24
74+
$15.05
99+
$14.11
199+
$13.92
249+
$13.73
499+
$13.54
999+
$13.17
Couldn't load pickup availability
Description
Description
Dunlop Tension Sprocket: The idler sprocket set is designed as a tensioning element for applications in chain drives. The idler sprocket runs on a self-lubricating ball bearing Type 2Z. We have a range of idler sprockets to suit standard roller chain pitch sizes from O6B-1 to 24B-1.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
- Brand / Quality:
- Dunlop - Good Quality
- Thread Size:
- M12
- Number of Teeth:
- 15
- Part No:
- N1/2 inch
Technical
Technical
| Part No. | N1/2 inch |
|---|---|
| No of Teeth | 15 |
| W | M12mm |
| L | 80mm |
| A | 12mm |
| B | 7.2mm |
| C | 12mm |
| D | 61.08mm |
| Torque Hex Nut 0.5d | 35 Nm |
| Adjusting Range Track R | 27-65mm |
| Size SE | 27 |
| To Fit Roller Chain ANSI | 40 |
| To Fit Roller Chain DIN 8187 | ISO 08 B |
