SKU: UCC206-20

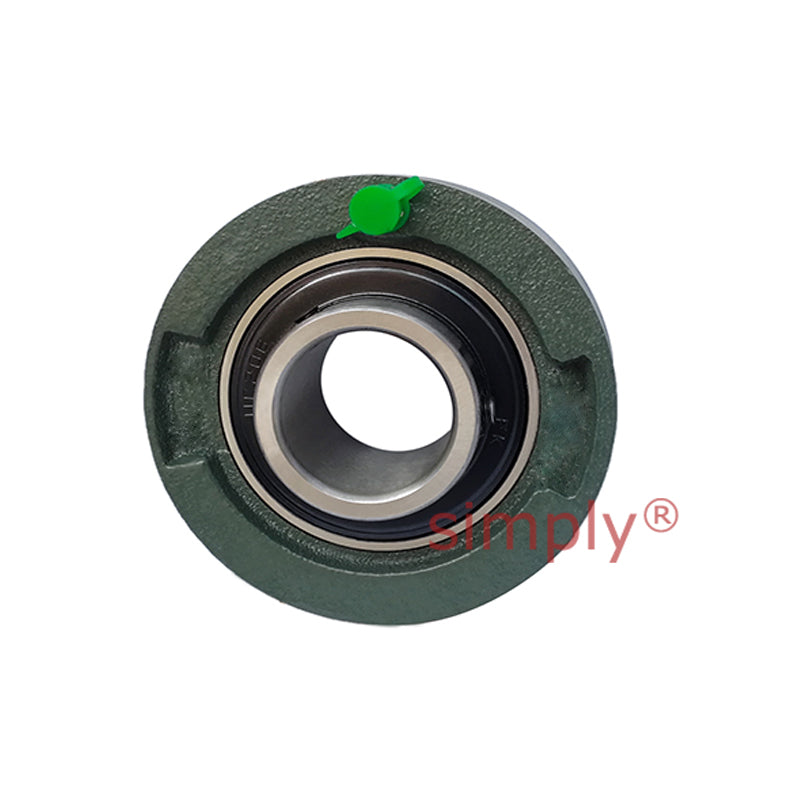

UCC206-20 Imperial Cast Iron Normal Duty Cartridge Unit with 1-7/16 inch Bore Insert 3.3465 inch Outside Dia
UCC206-20 Imperial Cast Iron Normal Duty Cartridge Unit with 1-7/16 inch Bore Insert 3.3465 inch Outside Dia
Regular price
$24.25
ex VAT
Regular price
Sale price
$24.25
ex VAT
In stock
Price Break
10+
$21.58
19+
$20.37
29+
$20.13
39+
$19.89
49+
$19.64
74+
$19.40
99+
$18.19
199+
$17.95
249+
$17.70
499+
$17.46
999+
$16.98
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Outside Diameter:
- 85.001mm = 3.3465 inch
- Style:
- UCC
Technical
Technical
| Bore d | 1-7/16 inch |
|---|---|
| Outer Dia a | 3.3465 inch |
| g | 1-1/16 inch |
| r | 0.079 inch |
| B | 1.500 inch |
| n | 0.626 inch |
| Bearing No | UC206-20 |
| Housing No | C206 |
