SKU: UCC210-31

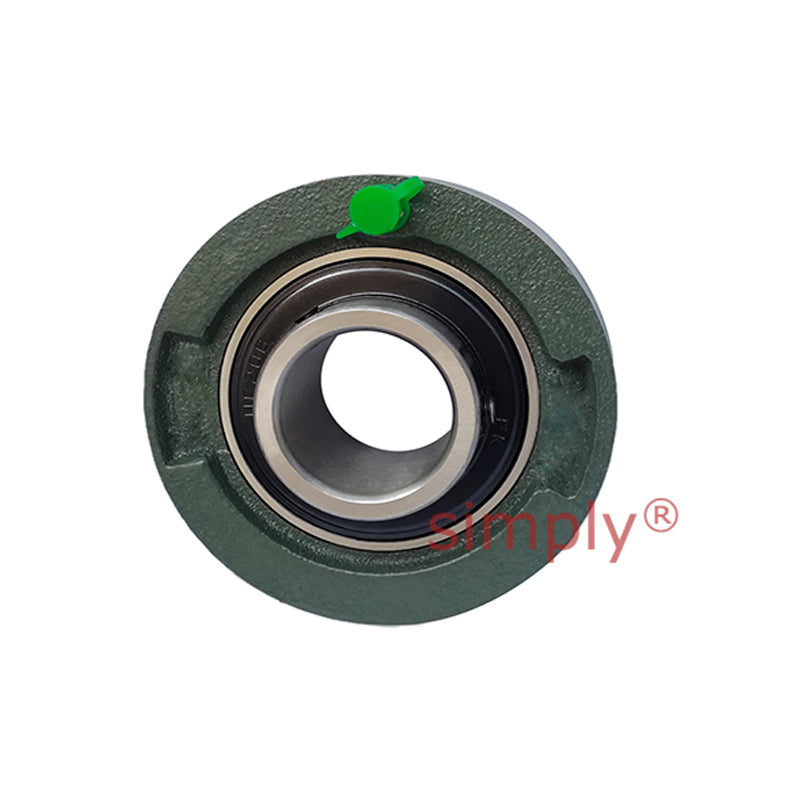

UCC210-31 Imperial Cast Iron Normal Duty Cartridge Unit with 1-15/16 inch Bore Insert 4.7244 inch Outside Dia
UCC210-31 Imperial Cast Iron Normal Duty Cartridge Unit with 1-15/16 inch Bore Insert 4.7244 inch Outside Dia
Regular price
$64.33
ex VAT
Regular price
Sale price
$64.33
ex VAT
In stock
Price Break
10+
$57.25
19+
$54.04
29+
$53.39
39+
$52.75
49+
$52.11
74+
$51.46
99+
$48.25
199+
$47.60
249+
$46.96
499+
$46.32
999+
$45.03
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Outside Diameter:
- 120mm = 4.7244 inch
- Style:
- UCC
Technical
Technical
| Bore d | 1-15/16 inch |
|---|---|
| Outer Dia a | 4.7244 inch |
| g | 1-19/04 inch |
| r | 0.098 inch |
| B | 2.0315 inch |
| n | 0.748 inch |
| Bearing No | UC210-31 |
| Housing No | C210 |
