SKU: UCC211-34
UCC211-34 Imperial Cast Iron Normal Duty Cartridge Unit with 2-1/8 inch Bore Insert 4.9213 inch Outside Dia
UCC211-34 Imperial Cast Iron Normal Duty Cartridge Unit with 2-1/8 inch Bore Insert 4.9213 inch Outside Dia
Regular price
$74.48
ex VAT
Regular price
Sale price
$74.48
ex VAT
In stock
Price Break
10+
$66.29
19+
$62.56
29+
$61.82
39+
$61.07
49+
$60.33
74+
$59.58
99+
$55.86
199+
$55.12
249+
$54.37
499+
$53.63
999+
$52.14
Couldn't load pickup availability
Description
Description

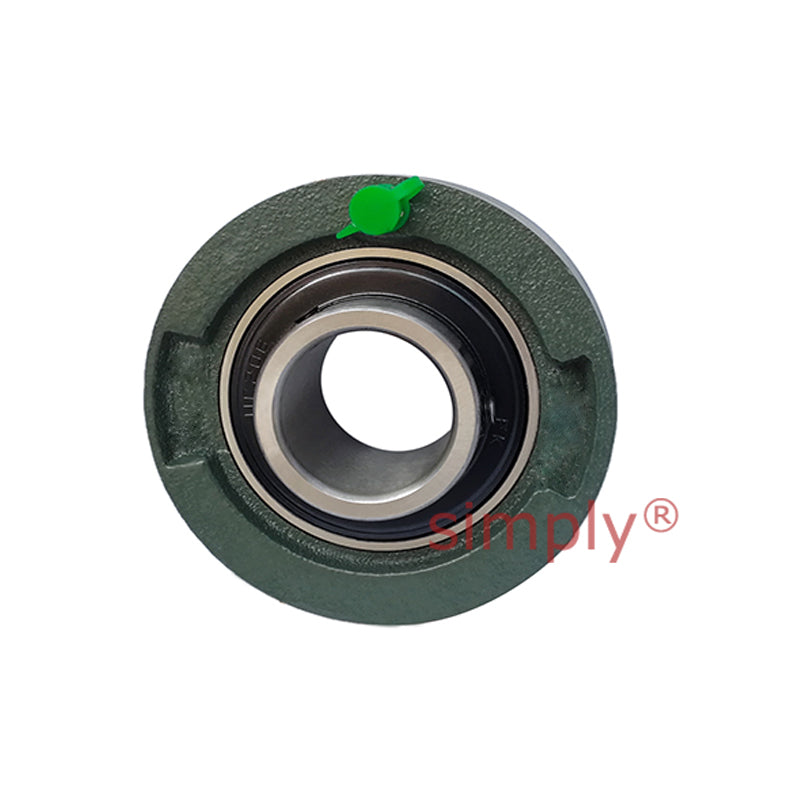

UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Outside Diameter:
- 125.001mm = 4.9213 inch
- Style:
- UCC
Technical
Technical
| Bore d | 2-1/8 inch |
|---|---|
| Outer Dia a | 4.9213 inch |
| g | 1-3/8 inch |
| r | 0.098 inch |
| B | 2.189 inch |
| n | 0.874 inch |
| Bearing No | UC211-34 |
| Housing No | C211 |
