SKU: UCFE208T20-SNR

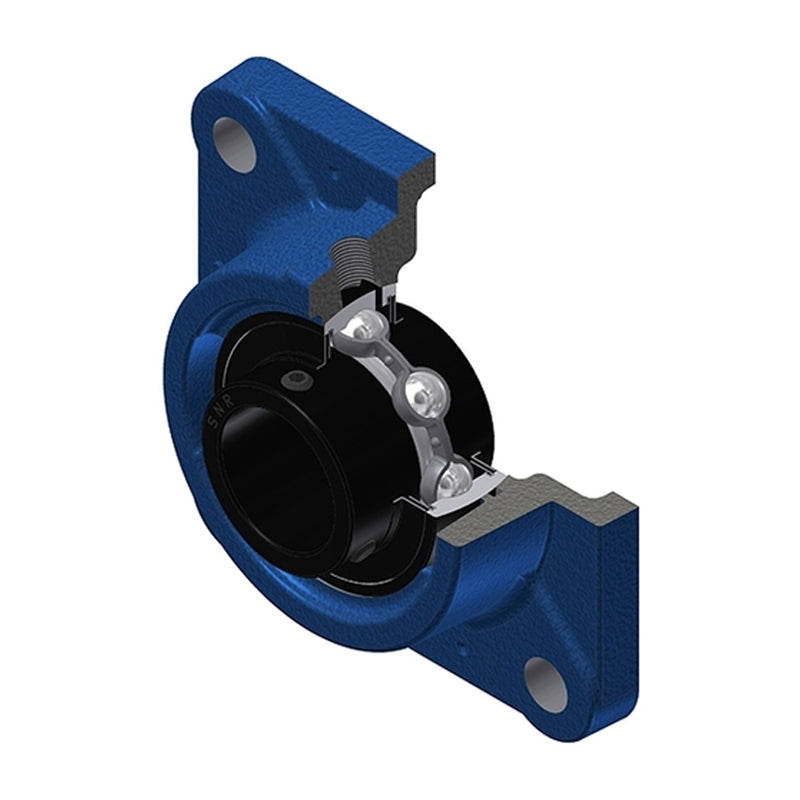

SNR UCFE208T20 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert Wide Temperature Version - Allow 2-3 Days
SNR UCFE208T20 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert Wide Temperature Version - Allow 2-3 Days
Regular price
$93.10
ex VAT
Regular price
Sale price
$93.10
ex VAT
In stock
Price Break
10+
$82.86
19+
$78.20
29+
$77.27
39+
$76.34
49+
$75.41
74+
$74.48
99+
$69.83
199+
$68.89
249+
$67.96
499+
$67.03
999+
$65.17
Couldn't load pickup availability
Description
Description
UCFE/UCFEX Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCFE
- Bolt Hole Centres:
- 101.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 39.5mm |
| A1 | 13mm |
| A2 | 54.2mm |
| B | 49.2mm |
| e | 24mm |
| J | 101.5mm |
| L | 130mm |
| N | 14mm |
| S | 19mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.05 kg |
