SKU: UCFL319

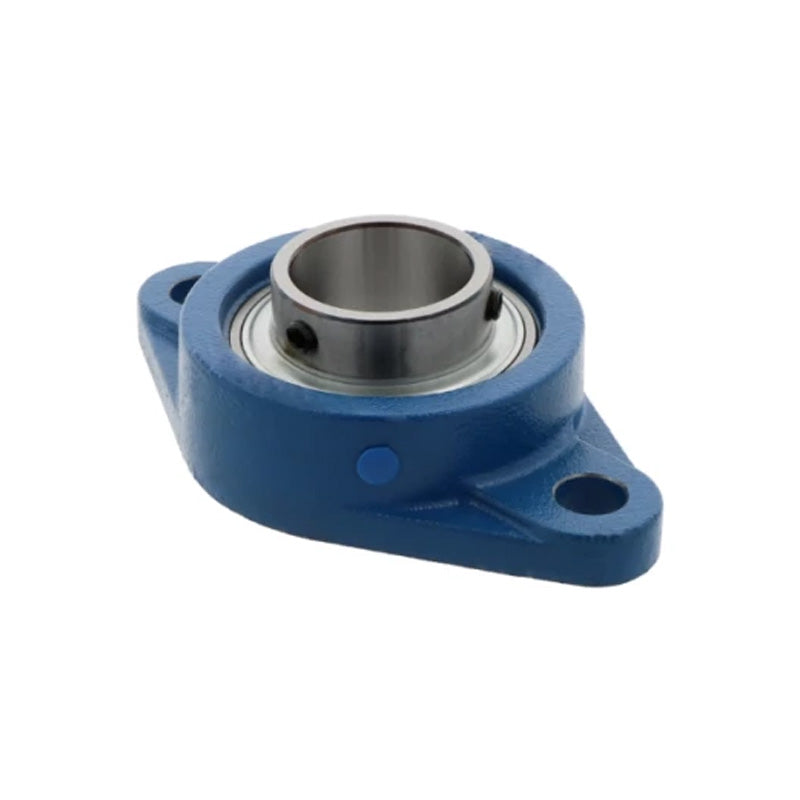

UCFL319 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 95mm Bore
UCFL319 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 95mm Bore
Regular price
$411.69
ex VAT
Regular price
Sale price
$411.69
ex VAT
In stock
Price Break
10+
$366.40
19+
$345.82
29+
$341.70
39+
$337.59
49+
$333.47
74+
$329.35
99+
$308.77
199+
$304.65
249+
$300.53
499+
$296.42
999+
$288.18
Couldn't load pickup availability
Description
Description
UCFL300 Series Heavy Duty 2 Bolt Oval Housings: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 95mm
- Style:
- UCFL
- Bolt Hole Centres:
- 330mm
Technical
Technical
| d | 95mm |
|---|---|
| a | 405mm |
| e | 330mm |
| i | 59mm |
| g | 40mm |
| l | 94mm |
| s | 41mm |
| b | 250mm |
| z | 121mm |
| B | 103mm |
| n | 41mm |
| Bolt size | M36 |
| Bearing no | UC319 |
| Housing no | FL319 |
| Weight | 21.712 kg |
