SKU: UCFX.13

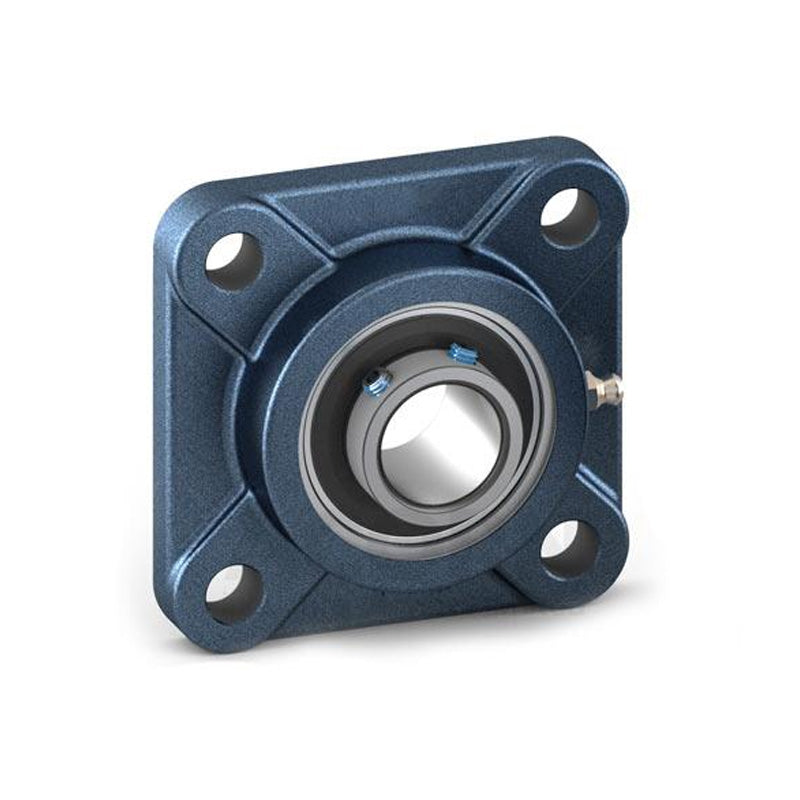

UCFX13 Metric Four Bolt Cast Iron Square Housing with 65mm Bore Insert
UCFX13 Metric Four Bolt Cast Iron Square Housing with 65mm Bore Insert
Regular price
$116.20
ex VAT
Regular price
Sale price
$116.20
ex VAT
Equivalent to: MSF65
In stock
Price Break
10+
$103.42
19+
$97.61
29+
$96.45
39+
$95.28
49+
$94.12
74+
$92.96
99+
$87.15
199+
$85.99
249+
$84.83
499+
$83.66
999+
$81.34
Couldn't load pickup availability
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSF65
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Style:
- UCFX
- Bolt Hole Centres:
- 149mm
Technical
Technical
| d | 65mm |
|---|---|
| a | 187mm |
| e | 149mm |
| i | 34mm |
| g | 21mm |
| L | 59mm |
| s | 19mm |
| Z | 73.7mm |
| Bi | 70.7mm |
| n | 25.4mm |
| Bolt Size | M16 |
| Weight | 5.9 kg |
| Dynamic load | 4870 kgf |
| Static load | 3810 kgf |
| Rec max speed | 2300 rpm |
