SKU: UCHA207-21

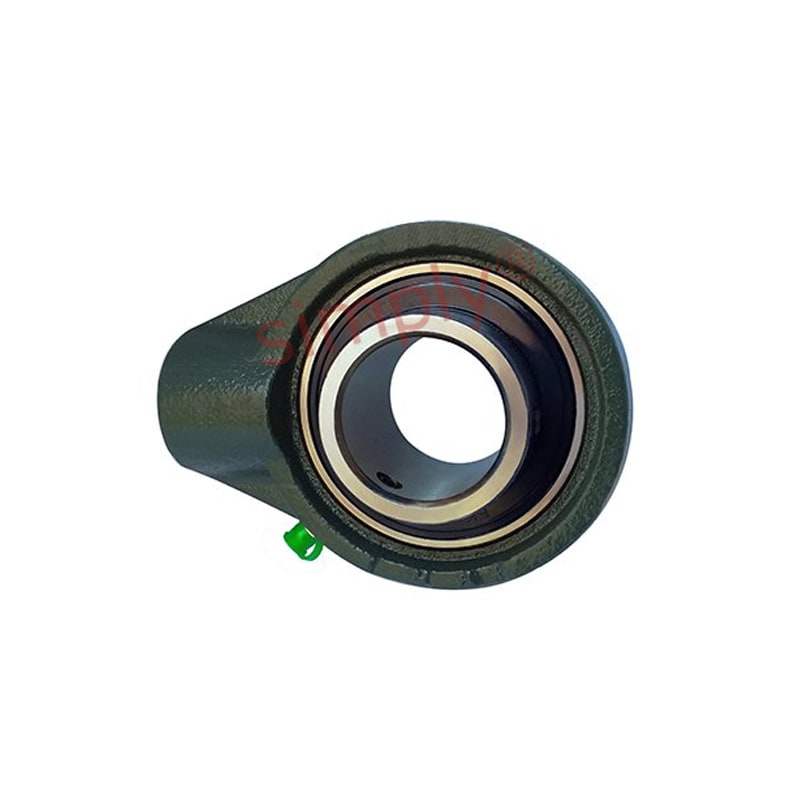

UCHA207-21 Imperial Cast Iron Hanger Bearing Unit with 1-5/16 inch Bore Insert
UCHA207-21 Imperial Cast Iron Hanger Bearing Unit with 1-5/16 inch Bore Insert
Regular price
$33.47
ex VAT
Regular price
Sale price
$33.47
ex VAT
In stock
Price Break
10+
$29.79
19+
$28.11
29+
$27.78
39+
$27.45
49+
$27.11
74+
$26.78
99+
$25.10
199+
$24.77
249+
$24.43
499+
$24.10
999+
$23.43
Couldn't load pickup availability
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 33.33mm = 1.312 (1-5/16) inch
- Style:
- UCHA
Technical
Technical
| d | 1-5/16 inch |
|---|---|
| h | 2-3/4 inch |
| w | 4-9/16 inch |
| b | 3-5/8 inch |
| c | 0 inch |
| a | 1-37/64 inch |
| s | G-3/4 |
| l | 3/4 inch |
| B | 1.689 inch |
| n | 0.689 inch |
| Bearing no | UC207-21 |
| Housing no | HA207 |
| Weight | 1.134 kg |
