SKU: UCHA213

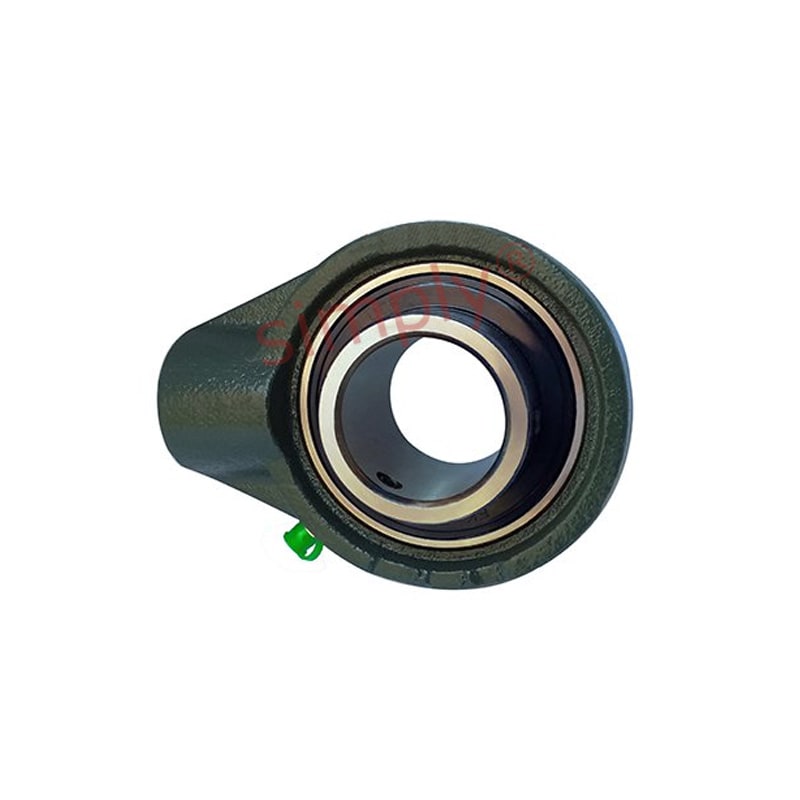

UCHA213 Metric Cast Iron Hanger Bearing Unit with 65mm Bore Insert
UCHA213 Metric Cast Iron Hanger Bearing Unit with 65mm Bore Insert
Regular price
$224.25
ex VAT
Regular price
Sale price
$224.25
ex VAT
In stock
Price Break
10+
$199.58
19+
$188.37
29+
$186.13
39+
$183.89
49+
$181.64
74+
$179.40
99+
$168.19
199+
$165.95
249+
$163.70
499+
$161.46
999+
$156.98
Couldn't load pickup availability
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Style:
- UCHA
Technical
Technical
| d | 65mm |
|---|---|
| h | 117mm |
| w | 200mm |
| b | 166mm |
| c | 9.5mm |
| a | 70mm |
| s | G1-1/2 |
| l | 32mm |
| B | 65.1mm |
| n | 25.4mm |
| Bearing no | UC213 |
| Housing no | HA213 |
| Weight | 5.437 kg |
