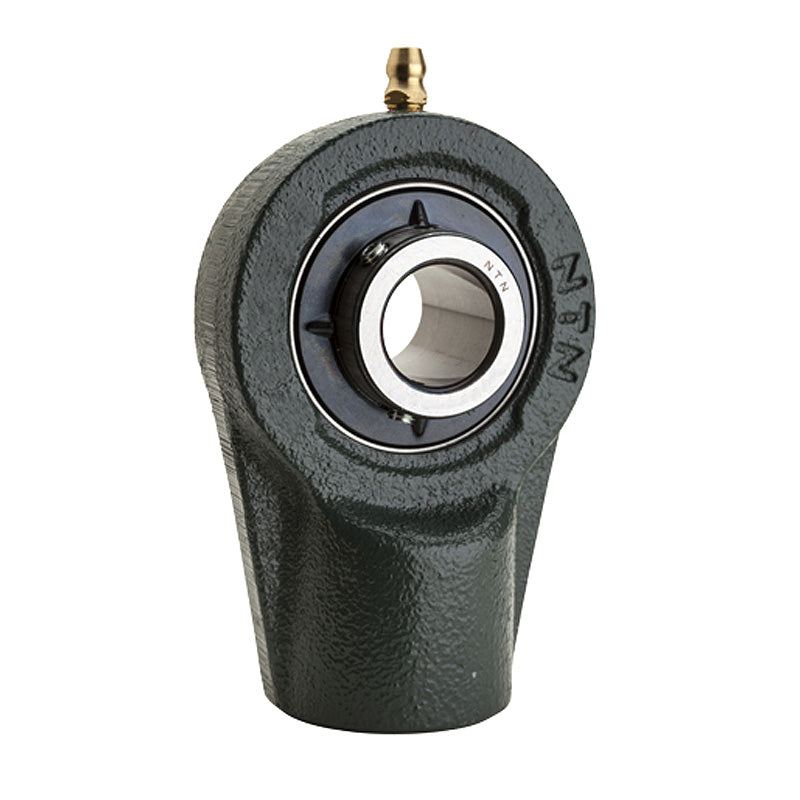

NTN UCHB210D1 Metric Cast Iron Hanger Bearing Unit with 50mm Bore Insert - Allow 2-3 Days
NTN UCHB210D1 Metric Cast Iron Hanger Bearing Unit with 50mm Bore Insert - Allow 2-3 Days
Regular price
$76.23
ex VAT
Regular price
Sale price
$76.23
ex VAT
In stock
Price Break
10+
$67.84
19+
$64.03
29+
$63.27
39+
$62.51
49+
$61.75
74+
$60.98
99+
$57.17
199+
$56.41
249+
$55.65
499+
$54.89
999+
$53.36
Couldn't load pickup availability
Description
Description
UCHB200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCHB
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| L | 118mm |
| H<sub>1</sub> | 142mm |
| c | 5mm |
| A | 37mm |
| H | 83mm |
| N | RP1 |
| D | 48mm |
| j | 21mm |
| B | 51.6mm |
| S | 19mm |
| Mass | 2.2 kg |
