SKU: UCLP212-38

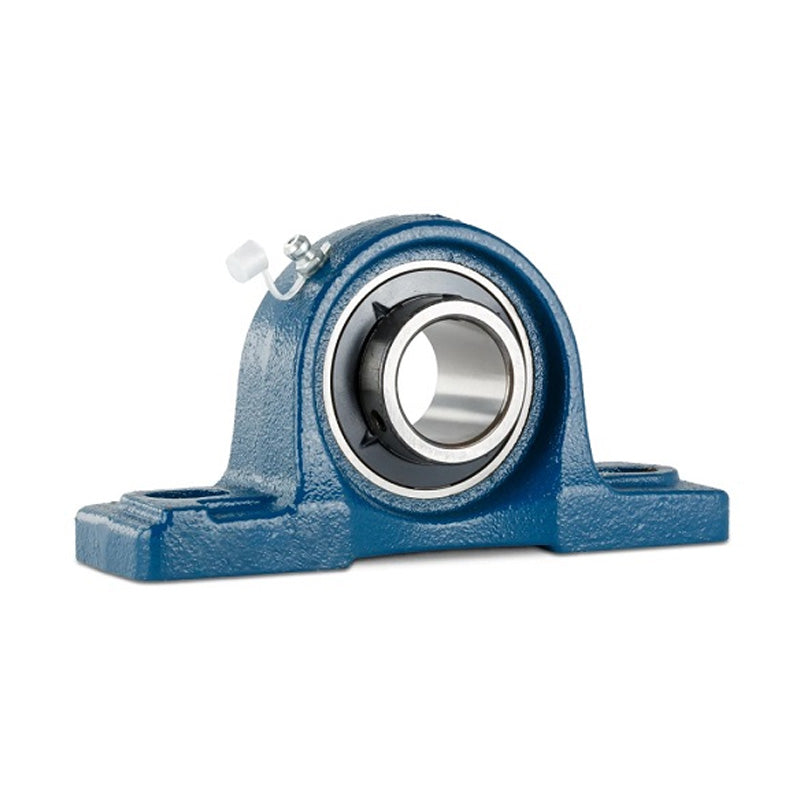

UCLP212-38 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/8 inch Insert
UCLP212-38 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/8 inch Insert
Regular price
$114.00
ex VAT
Regular price
Sale price
$114.00
ex VAT
In stock
Price Break
10+
$101.46
19+
$95.76
29+
$94.62
39+
$93.48
49+
$92.34
74+
$91.20
99+
$85.50
199+
$84.36
249+
$83.22
499+
$82.08
999+
$79.80
Couldn't load pickup availability
Description
Description
UCLP200 Series Normal Duty 2 Bolt Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Style:
- UCLP
- Bolt Hole Centres:
- 184.15mm = 7.25 (7-1/4) inch
Technical
Technical
| d | 2-3/8 inch |
|---|---|
| h | 2-11/16 inch |
| a | 9-1/2 inch |
| e | 7-1/4 inch |
| b | 2-3/4 inch |
| s1 | 25/32 inch |
| s2 | 29/32 inch |
| g | 63/64 inch |
| w | 5-23/64 inch |
| B | 2.563 inch |
| n | 1 inch |
| Bolt size | 5/8 inch |
| Bearing no | UC212-38 |
| Housing no | LP212 |
| Weight | 4.37 kg |
