SKU: UCP.212

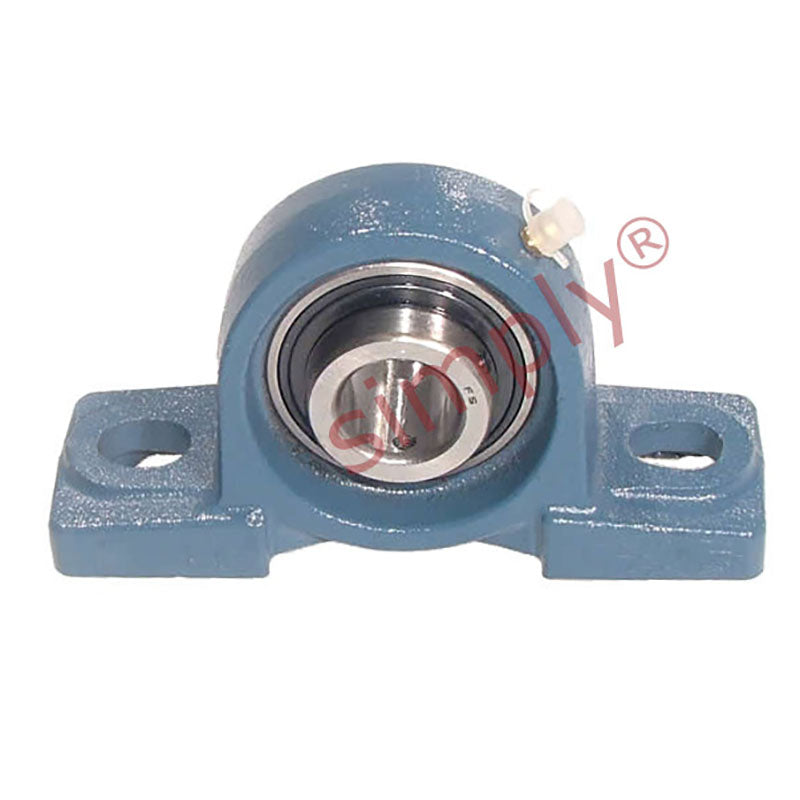

UCP212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert
UCP212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert
Regular price
$45.01
ex VAT
Regular price
Sale price
$45.01
ex VAT
Equivalent to: NP60
In stock
Price Break
10+
$40.06
19+
$37.81
29+
$37.36
39+
$36.91
49+
$36.46
74+
$36.01
99+
$33.76
199+
$33.31
249+
$32.86
499+
$32.41
999+
$31.51
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: NP60
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Style:
- UCP
- Bolt Hole Centres:
- 184mm
Technical
Technical
| d | 60mm |
|---|---|
| h | 69.8mm |
| a | 241mm |
| e | 184mm |
| b | 70mm |
| s2 | 25mm |
| s1 | 20mm |
| g | 25mm |
| w | 137mm |
| B1 | 65.1mm |
| n | 25.4mm |
| Bolt Size | M16 |
| Weight | 4.8 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
| Rec max speed | 2800 rpm |
