SKU: UCP.213

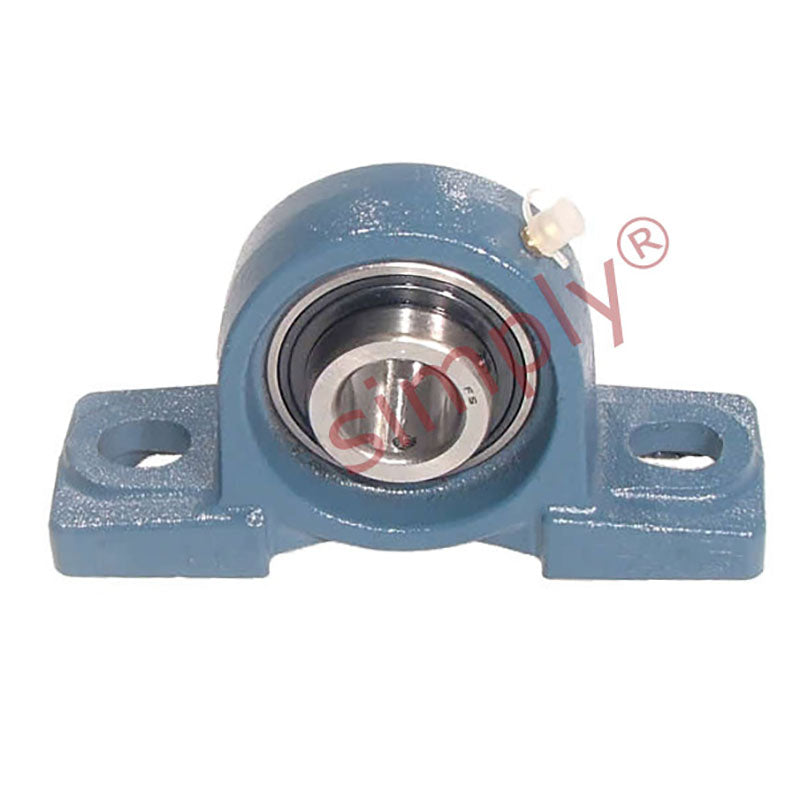

UCP213 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert
UCP213 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert
Regular price
$52.52
ex VAT
Regular price
Sale price
$52.52
ex VAT
In stock
Price Break
10+
$46.74
19+
$44.12
29+
$43.59
39+
$43.07
49+
$42.54
74+
$42.02
99+
$39.39
199+
$38.86
249+
$38.34
499+
$37.81
999+
$36.76
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Style:
- UCP
- Bolt Hole Centres:
- 203mm
Technical
Technical
| d | 65mm |
|---|---|
| h | 76.2mm |
| a | 265mm |
| e | 203mm |
| b | 70mm |
| s2 | 29mm |
| s1 | 25mm |
| g | 27mm |
| w | 150mm |
| B1 | 65.1mm |
| n | 25.4mm |
| Bolt Size | M20 |
| Weight | 5.7 kg |
| Dynamic load | 4480 kgf |
| Static load | 3470 kgf |
