SKU: UCP.306

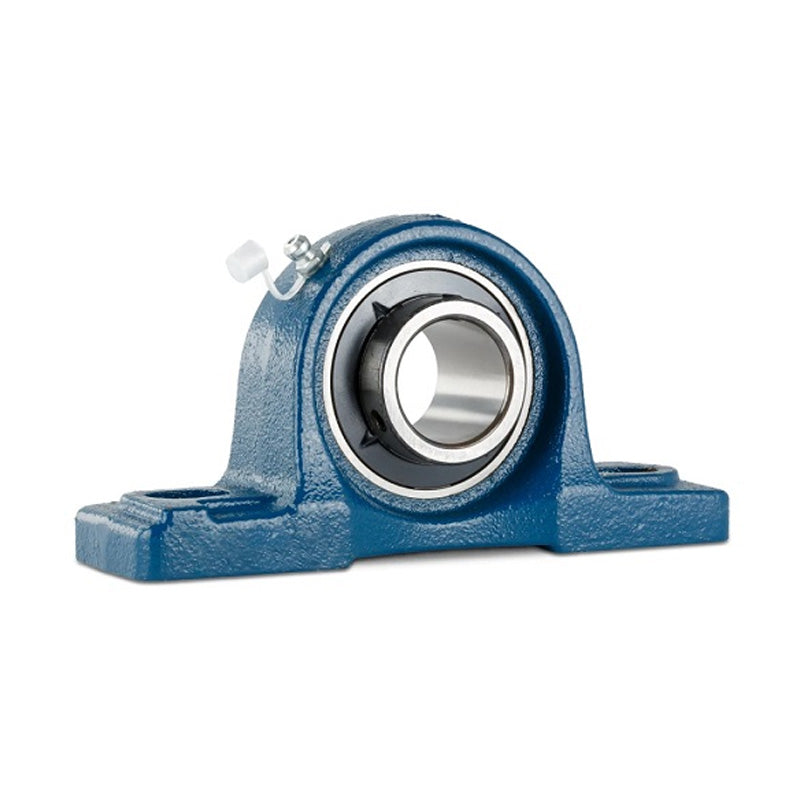

UCP306 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 30mm Bore Insert
UCP306 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 30mm Bore Insert
Regular price
$37.11
ex VAT
Regular price
Sale price
$37.11
ex VAT
In stock
Price Break
10+
$33.03
19+
$31.17
29+
$30.80
39+
$30.43
49+
$30.06
74+
$29.69
99+
$27.83
199+
$27.46
249+
$27.09
499+
$26.72
999+
$25.98
Couldn't load pickup availability
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- UCP
- Bolt Hole Centres:
- 140mm
Technical
Technical
| d | 30mm |
|---|---|
| h | 50mm |
| a | 180mm |
| e | 140mm |
| b | 50mm |
| s2 | 20mm |
| s1 | 17mm |
| g | 18mm |
| w | 95mm |
| b1 | 43mm |
| n | 17mm |
| Bolt | 14mm |
| Weight | 2.1 kg |
| Dynamic load | 2119 kgf |
| Static load | 1445 kgf |
