SKU: UCP.322

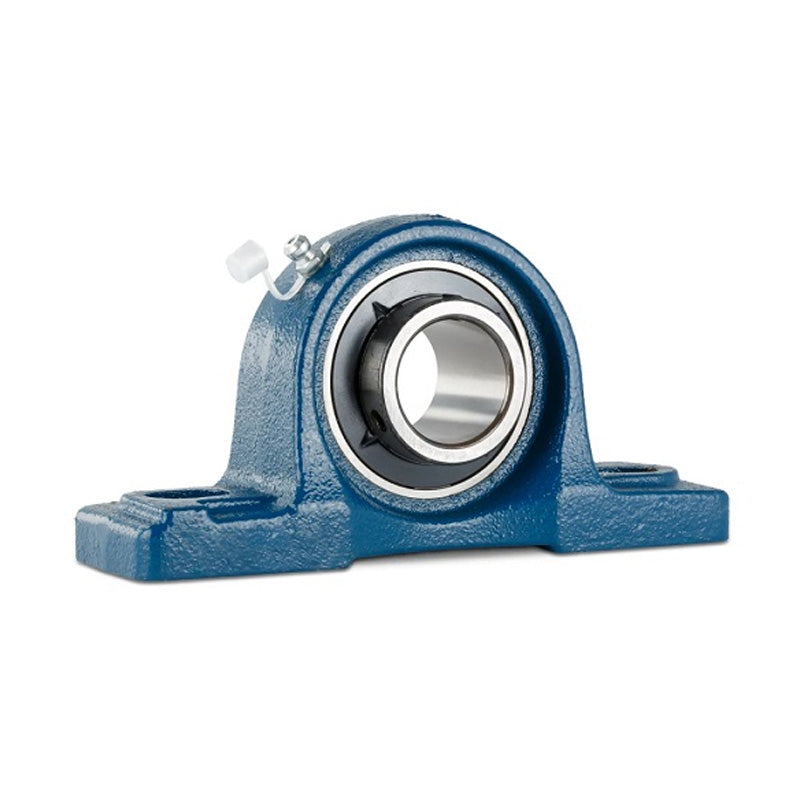

UCP322 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 110mm Bore Insert
UCP322 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 110mm Bore Insert
Regular price
$940.34
ex VAT
Regular price
Sale price
$940.34
ex VAT
In stock
Price Break
10+
$836.90
19+
$789.89
29+
$780.48
39+
$771.08
49+
$761.68
74+
$752.27
99+
$705.26
199+
$695.85
249+
$686.45
499+
$677.04
999+
$658.24
Couldn't load pickup availability
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 110mm
- Style:
- UCP
- Bolt Hole Centres:
- 400mm
Technical
Technical
| d | 110mm |
|---|---|
| h | 150mm |
| a | 520mm |
| e | 400mm |
| b | 140mm |
| s2 | 55mm |
| s1 | 40mm |
| g | 50mm |
| w | 296mm |
| b1 | 117mm |
| n | 46mm |
| Bolt | 33mm |
| Weight | 43.2 kg |
| Dynamic load | 20500 kgf |
| Static load | 17900 kgf |
