SKU: UCPG211-SNR
SNR UCPG211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days
SNR UCPG211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days
Regular price
$71.62
ex VAT
Regular price
Sale price
$71.62
ex VAT
In stock
Price Break
10+
$63.74
19+
$60.16
29+
$59.44
39+
$58.73
49+
$58.01
74+
$57.30
99+
$53.72
199+
$53.00
249+
$52.28
499+
$51.57
999+
$50.13
Couldn't load pickup availability
Description
Description
UCPG200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCPG
- Bolt Hole Centres:
- 100mm
Technical
Technical

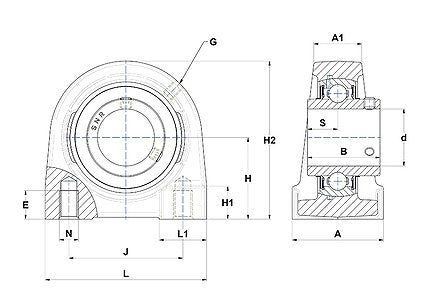

| --- | Dimensions |
|---|---|
| Shaft diameter | 55mm |
| A | 60mm |
| A1 | 34mm |
| B | 55.6mm |
| E | 25mm |
| H | 63.5mm |
| H1 | 25mm |
| H2 | 126mm |
| J | 100mm |
| L | 140mm |
| L1 | 40mm |
| N | M16 |
| S | 22.2mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.42 kg |
