SKU: UCT.213-40

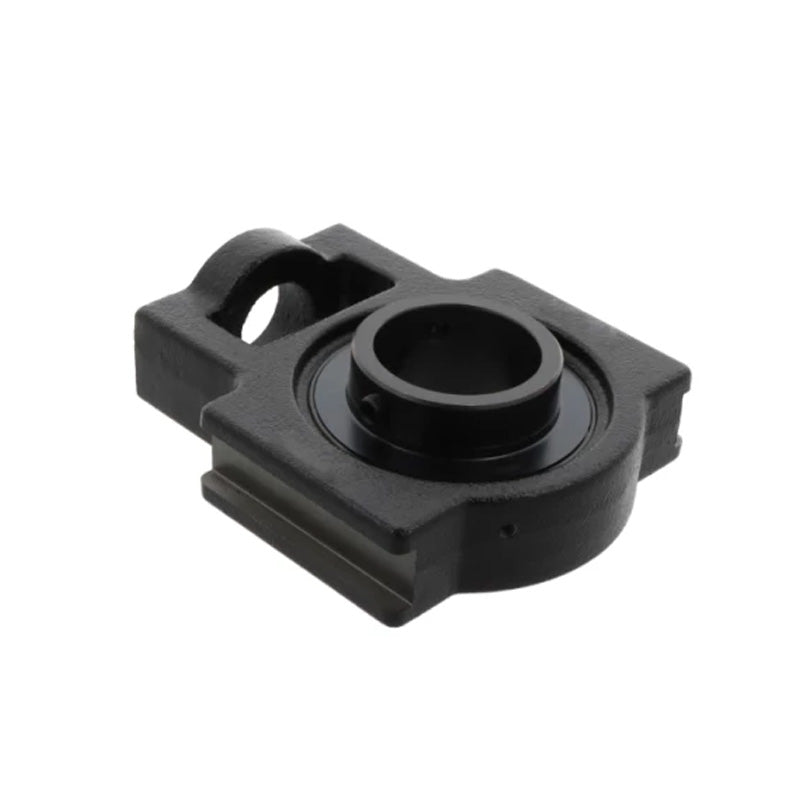

UCT213-40 Metric Series Cast Iron Take Up Unit Housing with 2-1/2 inch Bore Bearing Unit
UCT213-40 Metric Series Cast Iron Take Up Unit Housing with 2-1/2 inch Bore Bearing Unit
Regular price
$92.79
ex VAT
Regular price
Sale price
$92.79
ex VAT
In stock
Price Break
10+
$82.58
19+
$77.94
29+
$77.02
39+
$76.09
49+
$75.16
74+
$74.23
99+
$69.59
199+
$68.66
249+
$67.74
499+
$66.81
999+
$64.95
Couldn't load pickup availability
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Style:
- UCT
Technical
Technical
| d | 2-1/2 inch |
|---|---|
| o | 32mm |
| g | 21mm |
| p | 111mm |
| q | 70mm |
| s | 41mm |
| b | 121mm |
| k | 26mm |
| e | 151mm |
| a | 167mm |
| W | 224mm |
| j | 70mm |
| L | 51mm |
| h | 137mm |
| Bi | 65.1mm |
| n | 25.4mm |
| Weight | 6.9 kg |
| Dynamic load | 4480 kgf |
| Static load | 3470 kgf |
