SKU: UKT215/H2315

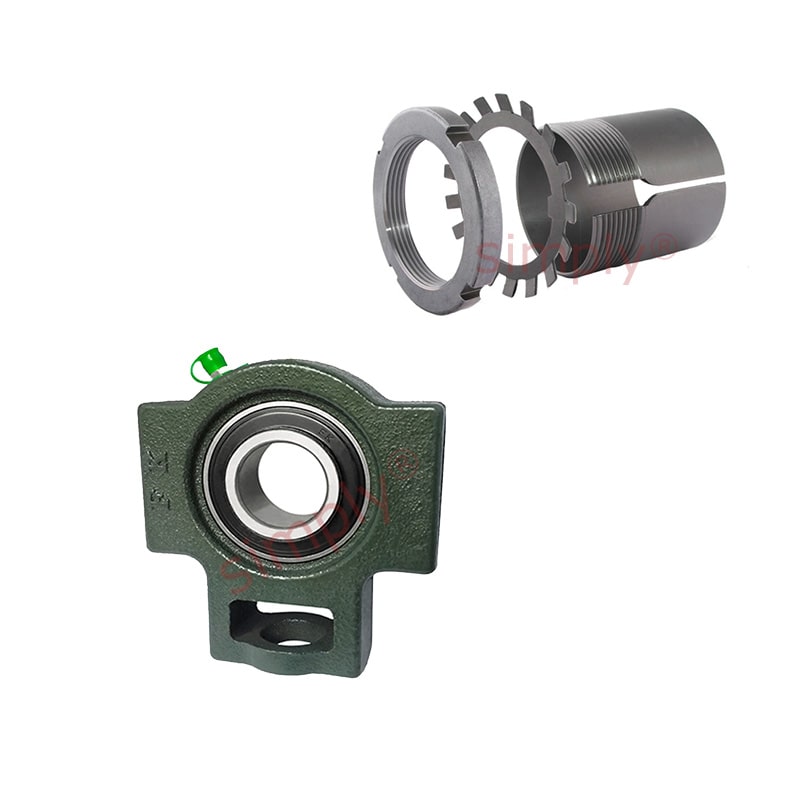

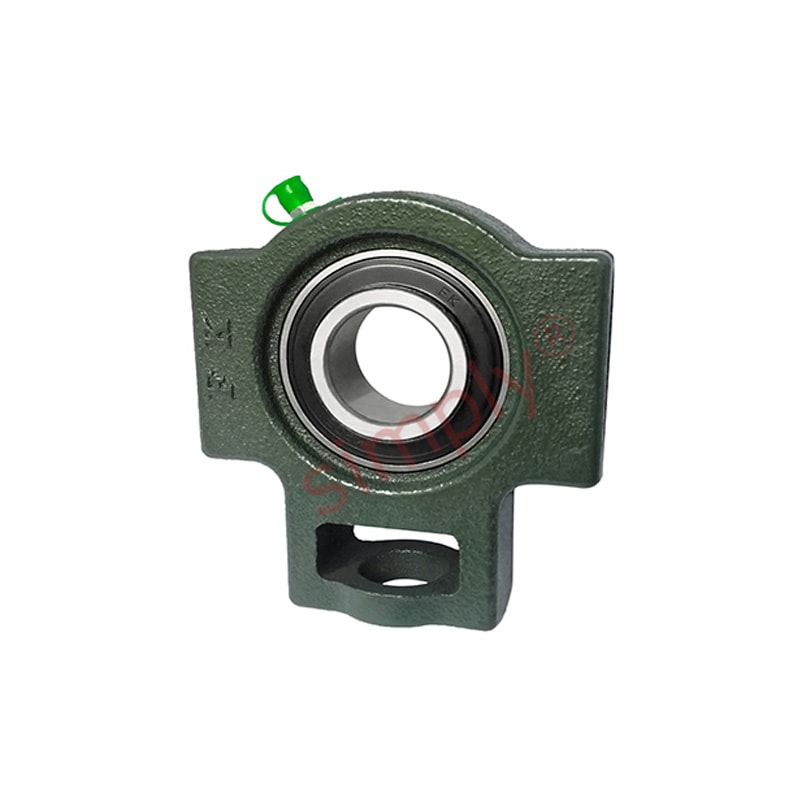

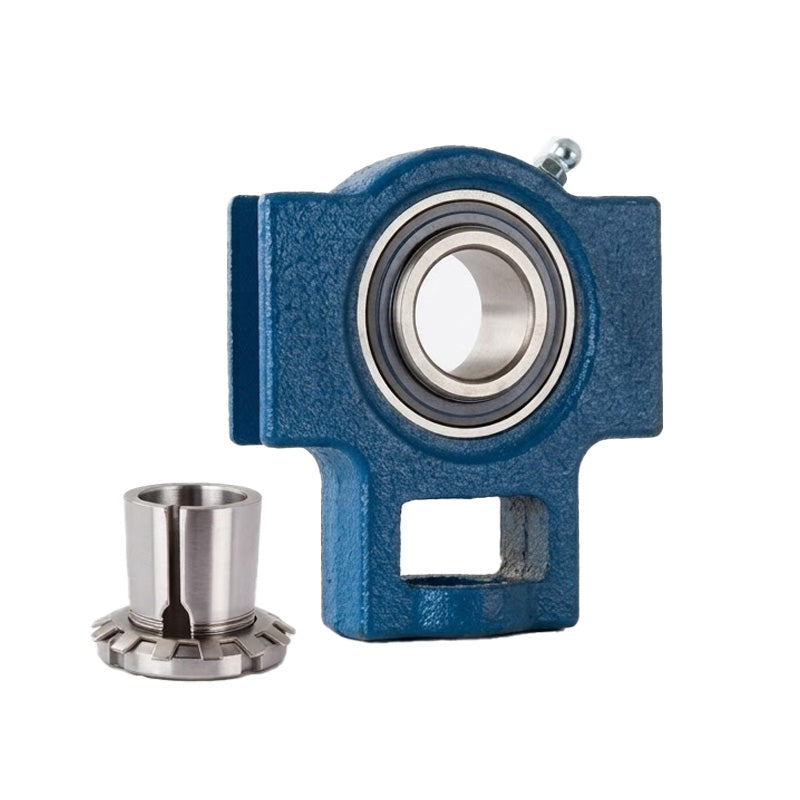

UKT215/H2315 Metric Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 65mm Shaft
UKT215/H2315 Metric Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 65mm Shaft
Regular price
$275.26
ex VAT
Regular price
Sale price
$275.26
ex VAT
In stock
Price Break
10+
$244.98
19+
$231.22
29+
$228.47
39+
$225.71
49+
$222.96
74+
$220.21
99+
$206.45
199+
$203.69
249+
$200.94
499+
$198.19
999+
$192.68
Couldn't load pickup availability
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Style:
- UKT
Technical
Technical
| d | 65mm |
|---|---|
| o | 32mm |
| g | 21mm |
| p | 111mm |
| q | 70mm |
| s | 41mm |
| b | 121mm |
| k | 26mm |
| e | 151mm |
| a | 167mm |
| w | 232mm |
| j | 70mm |
| l | 48mm |
| h | 140mm |
| t | 99mm |
| B1 | 73mm |
| Bearing no | UK215;H2315 |
| Housing no | T215 |
| Weight | 7.52 kg |
