SKU: UKT217/H2317

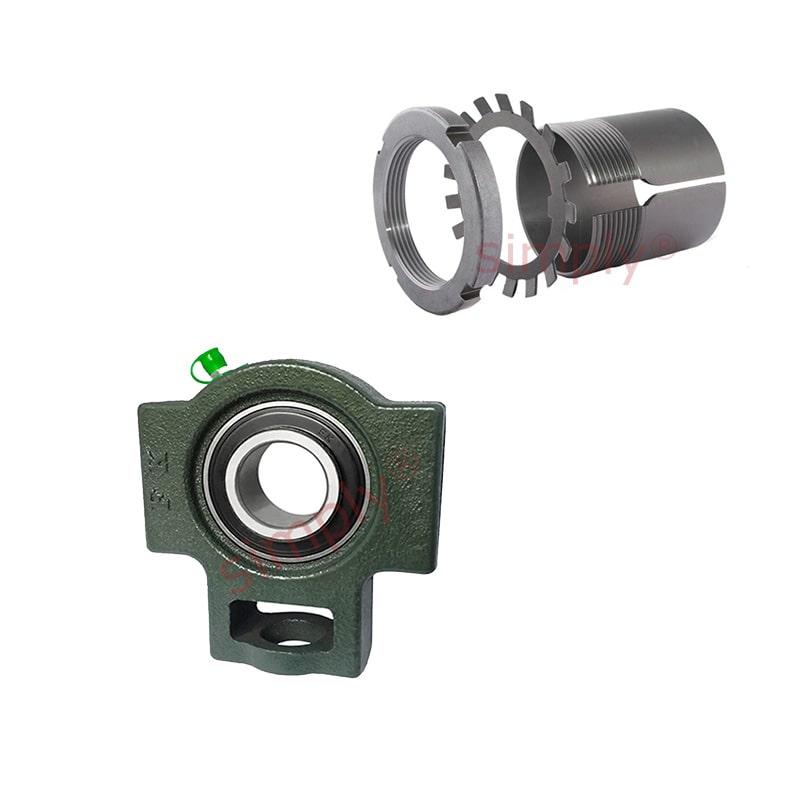

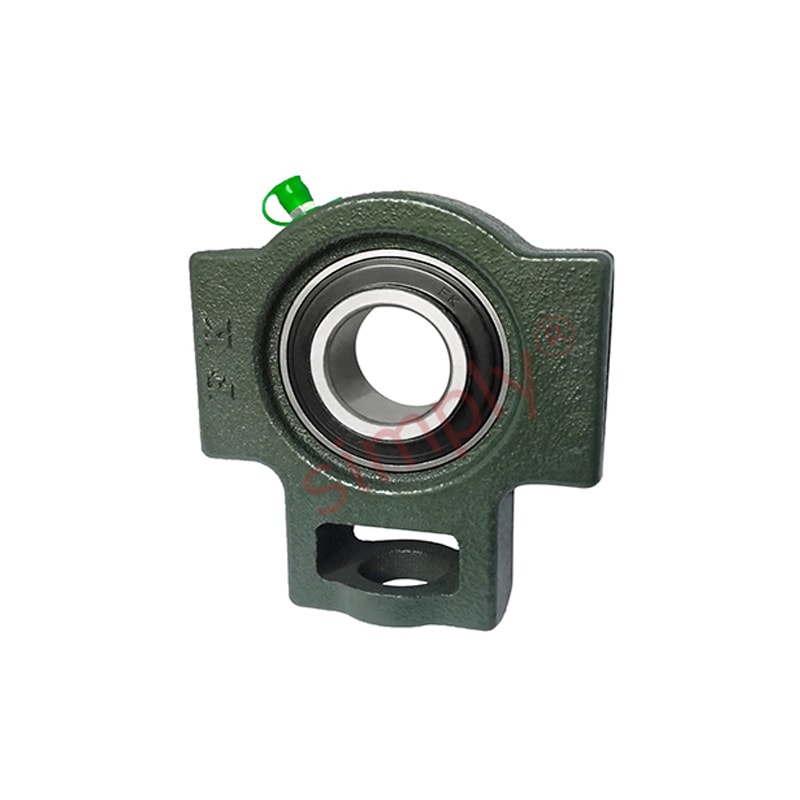

UKT217/H2317 Metric Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 75mm Shaft
UKT217/H2317 Metric Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 75mm Shaft
Regular price
$383.28
ex VAT
Regular price
Sale price
$383.28
ex VAT
In stock
Price Break
10+
$341.12
19+
$321.96
29+
$318.12
39+
$314.29
49+
$310.46
74+
$306.62
99+
$287.46
199+
$283.63
249+
$279.79
499+
$275.96
999+
$268.30
Couldn't load pickup availability
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Style:
- UKT
Technical
Technical
| d | 75mm |
|---|---|
| o | 38mm |
| g | 29mm |
| p | 124mm |
| q | 73mm |
| s | 48mm |
| b | 157mm |
| k | 30mm |
| e | 173mm |
| a | 198mm |
| w | 260mm |
| j | 73mm |
| l | 54mm |
| h | 162mm |
| t | 113.2mm |
| B1 | 82mm |
| Bearing no | UK217;H2317 |
| Housing no | T217 |
| Weight | 11.38 kg |
