SKU: USEHE209-SNR

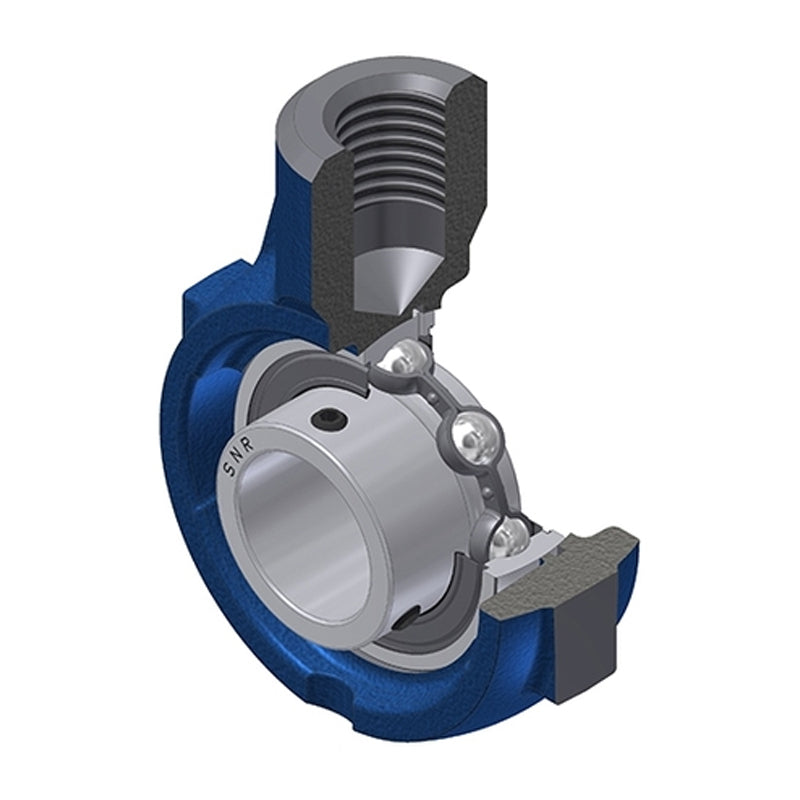

SNR USEHE209 Metric Cast Iron Hanger Bearing Unit with 45mm Bore Insert - Allow 2-3 Days
SNR USEHE209 Metric Cast Iron Hanger Bearing Unit with 45mm Bore Insert - Allow 2-3 Days
Regular price
$54.68
ex VAT
Regular price
Sale price
$54.68
ex VAT
In stock
Price Break
10+
$48.67
19+
$45.93
29+
$45.38
39+
$44.84
49+
$44.29
74+
$43.74
99+
$41.01
199+
$40.46
249+
$39.92
499+
$39.37
999+
$38.28
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- USEHE
Technical
Technical

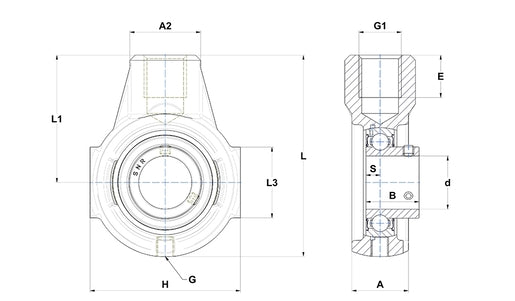

| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| A | 40mm |
| A2 | 40mm |
| B | 41.2mm |
| E | 24mm |
| H | 110mm |
| L | 145mm |
| L1 | 90mm |
| L3 | 45mm |
| S | 10.2mm |
| G | R1/8″ |
| G1 | M24 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.85 kg |
