SKU: USFD205M12-SNR

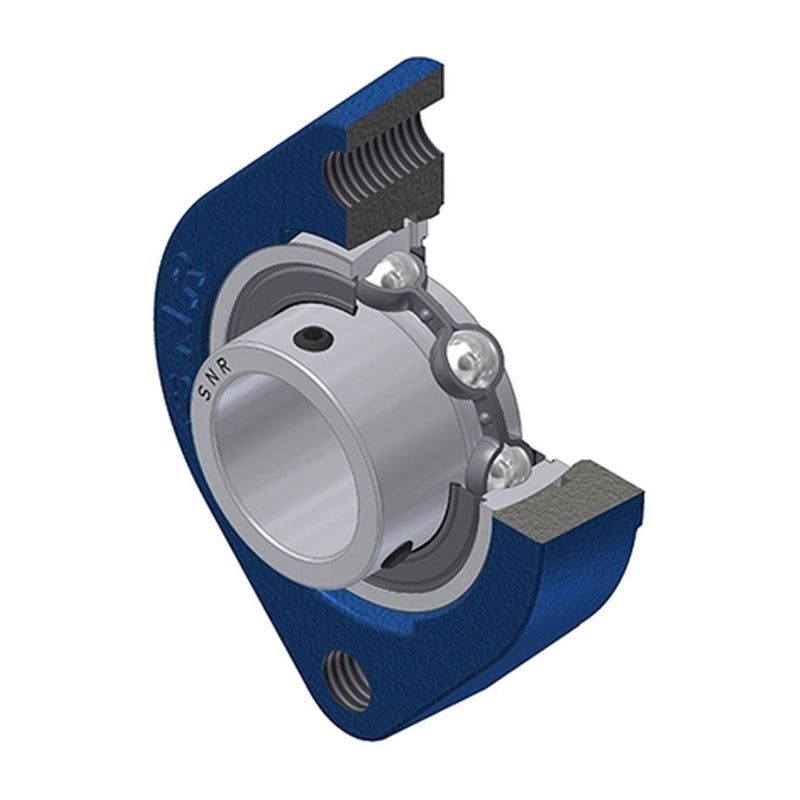

SNR USFD205M12 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert - Allow 2-3 Days
SNR USFD205M12 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert - Allow 2-3 Days
Regular price
$30.38
ex VAT
Regular price
Sale price
$30.38
ex VAT
In stock
Price Break
10+
$27.04
19+
$25.52
29+
$25.22
39+
$24.91
49+
$24.61
74+
$24.30
99+
$22.79
199+
$22.48
249+
$22.18
499+
$21.87
999+
$21.27
Couldn't load pickup availability
Description
Description
USFD200 Series 2 Bolt Cast Iron Oval Flange Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- USFD
- Bolt Hole Centres:
- 29.4mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| A | 17.5mm |
| A2 | 29.4mm |
| B | 27mm |
| e | 9.9mm |
| H | 97mm |
| J | 76.2mm |
| L | 71mm |
| N1 | M12 |
| S | 7.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.47 kg |
