SKU: WHG30-2-SKF

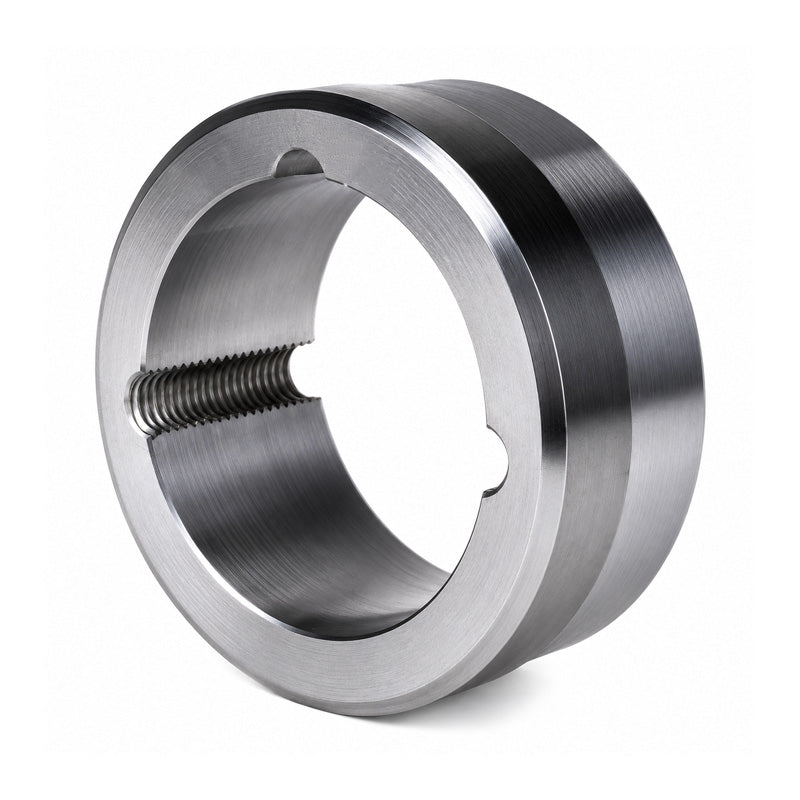

SKF WHG30-2 Weld on Hub Shaft Fixing with Tapered Bore
SKF WHG30-2 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
$56.74
ex VAT
Regular price
Sale price
$56.74
ex VAT
In stock
Price Break
10+
$50.50
19+
$47.66
29+
$47.09
39+
$46.53
49+
$45.96
74+
$45.39
99+
$42.56
199+
$41.99
249+
$41.42
499+
$40.85
999+
$39.72
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 3020
- Outside Diameter:
- 145mm
- Width:
- 50mm
Technical
Technical
| Hub Reference | WHG30-2 |
|---|---|
| Bush Number | 3020 |
| A | 145mm |
| B | 140mm |
| C | 139.5mm |
| D | 50mm |
| E | 20mm |
| F | 15mm |
| F1 | 17mm |
| X | 17mm |
