SKU: WHG35-SKF

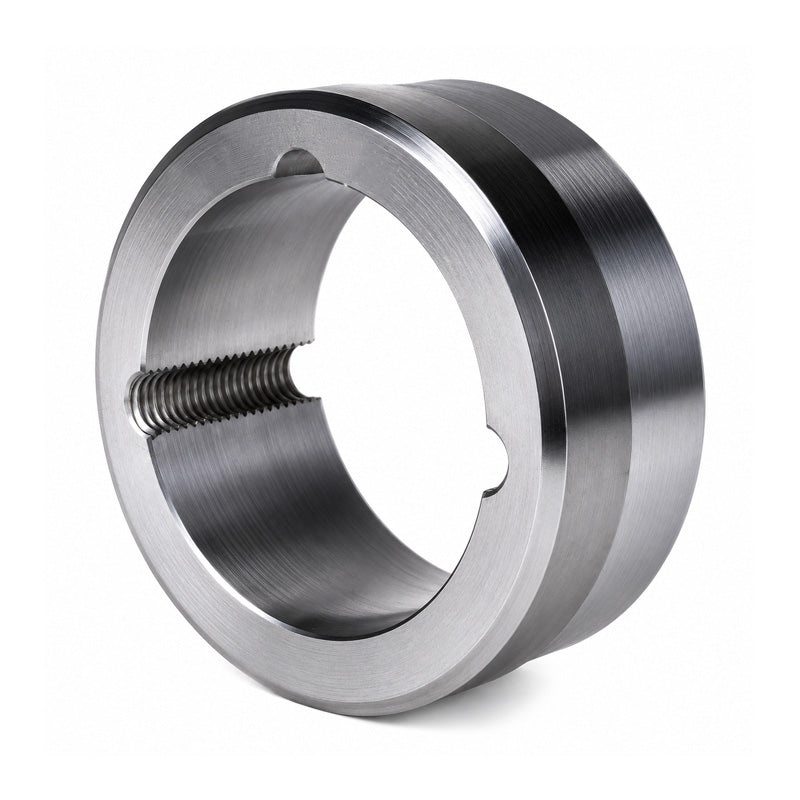

SKF WHG35 Weld on Hub Shaft Fixing with Tapered Bore
SKF WHG35 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
$103.22
ex VAT
Regular price
Sale price
$103.22
ex VAT
In stock
Price Break
10+
$91.87
19+
$86.70
29+
$85.67
39+
$84.64
49+
$83.61
74+
$82.58
99+
$77.42
199+
$76.38
249+
$75.35
499+
$74.32
999+
$72.25
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 3525
- Outside Diameter:
- 190mm
- Width:
- 65mm
Technical
Technical
| Hub Reference | WHG35 |
|---|---|
| Bush Number | 3525 |
| A | 190mm |
| B | 180mm |
| C | 179.5mm |
| D | 65mm |
| E | 25mm |
| F | 25mm |
| F1 | 22mm |
| X | 22mm |
