SKU: WMG50-MB

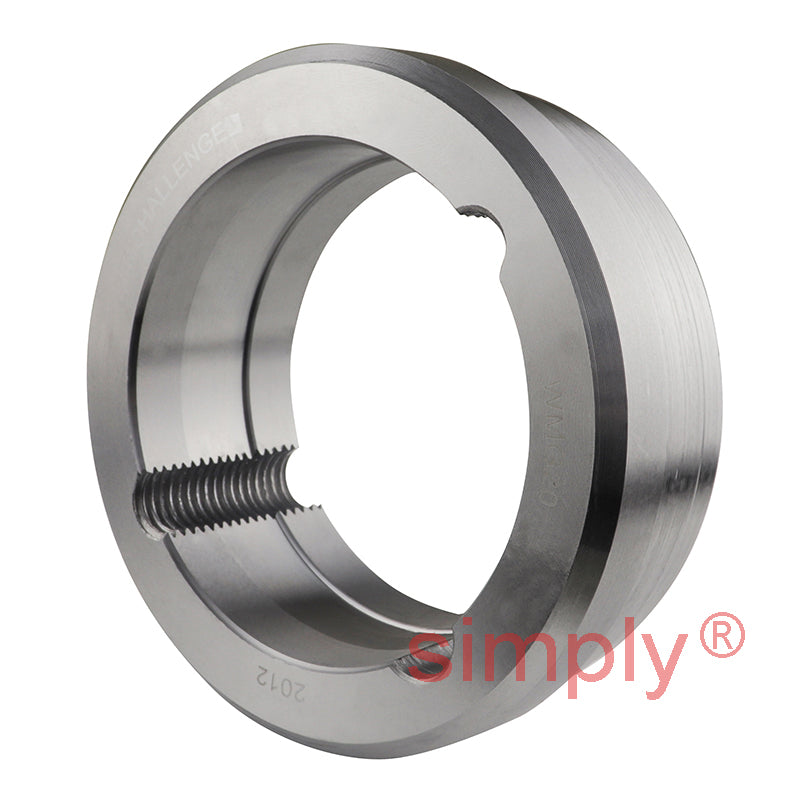

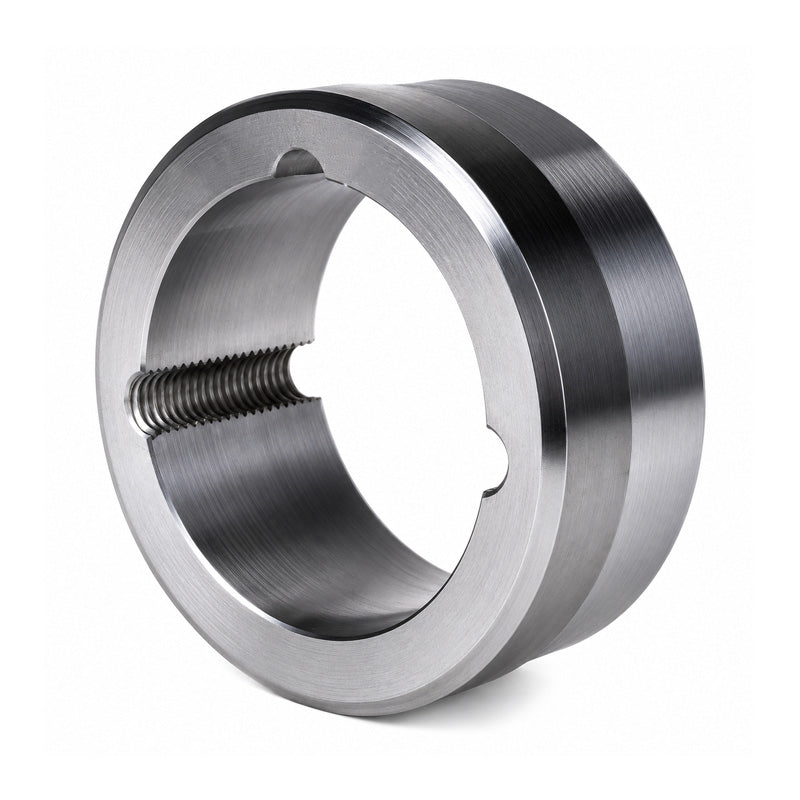

Major Brand WMG50 Weld on Hub Shaft Fixing with Tapered Bore
Major Brand WMG50 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
$326.64
ex VAT
Regular price
Sale price
$326.64
ex VAT
In stock
Price Break
10+
$290.71
19+
$274.38
29+
$271.11
39+
$267.84
49+
$264.58
74+
$261.31
99+
$244.98
199+
$241.71
249+
$238.45
499+
$235.18
999+
$228.65
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- Major Brand - High Quality
- Bush Size:
- 5050
- Outside Diameter:
- 276mm
- Width:
- 127mm
Technical
Technical

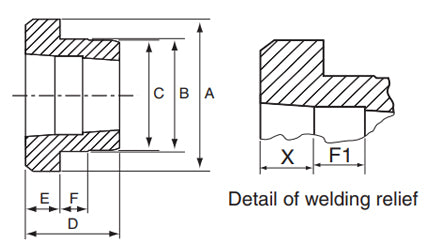

| Hub Reference | WMG50 |
|---|---|
| Bush Number | 5050 |
| A | 276mm |
| B | 242mm |
| C | 228mm |
| D | 127mm |
| E | 38mm |
| F | 38mm |
| F1 | 42mm |
| X | 42mm |
