SKU: YAR205-100-2FW/VA228-SKF

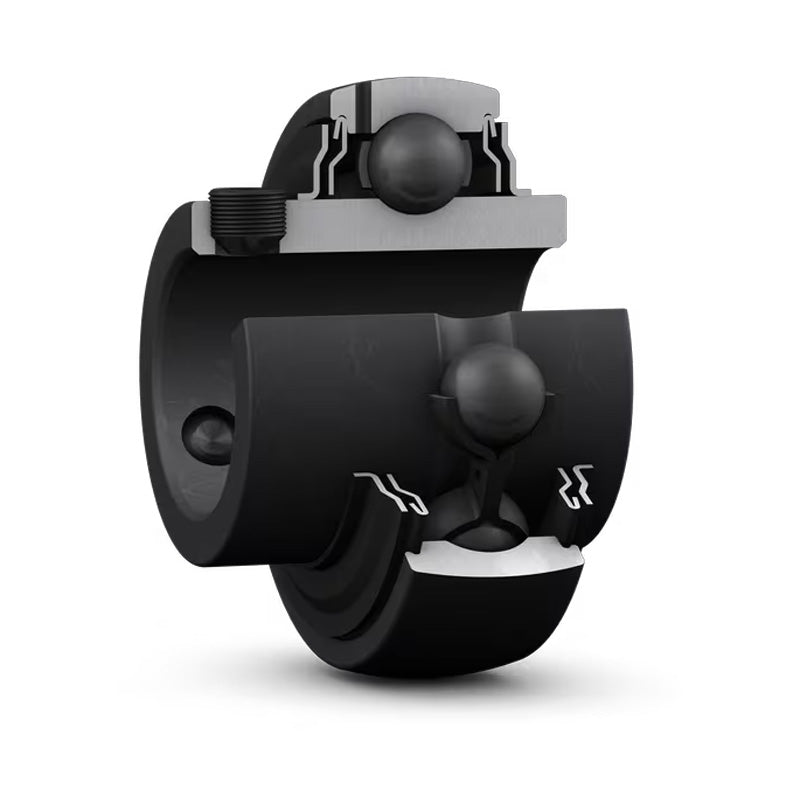

SKF YAR2051002FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1 inch shaft
SKF YAR2051002FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1 inch shaft
Regular price
$151.61
ex VAT
Regular price
Sale price
$151.61
ex VAT
In stock
Price Break
10+
$134.93
19+
$127.35
29+
$125.84
39+
$124.32
49+
$122.80
74+
$121.29
99+
$113.71
199+
$112.19
249+
$110.68
499+
$109.16
999+
$106.13
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1 inch |
|---|---|
| D | 52mm |
| B | 34.1mm |
| C | 15mm |
| d1 | 33.7mm |
| s1 | 19.8mm |
| r1r2 min | 0.6mm |
| Dynamic load C | 14 kN |
| Static load Co | 7.8 kN |
| Weight | 0.19 kg |
