SKU: YAR206-2FW/VA228-SKF

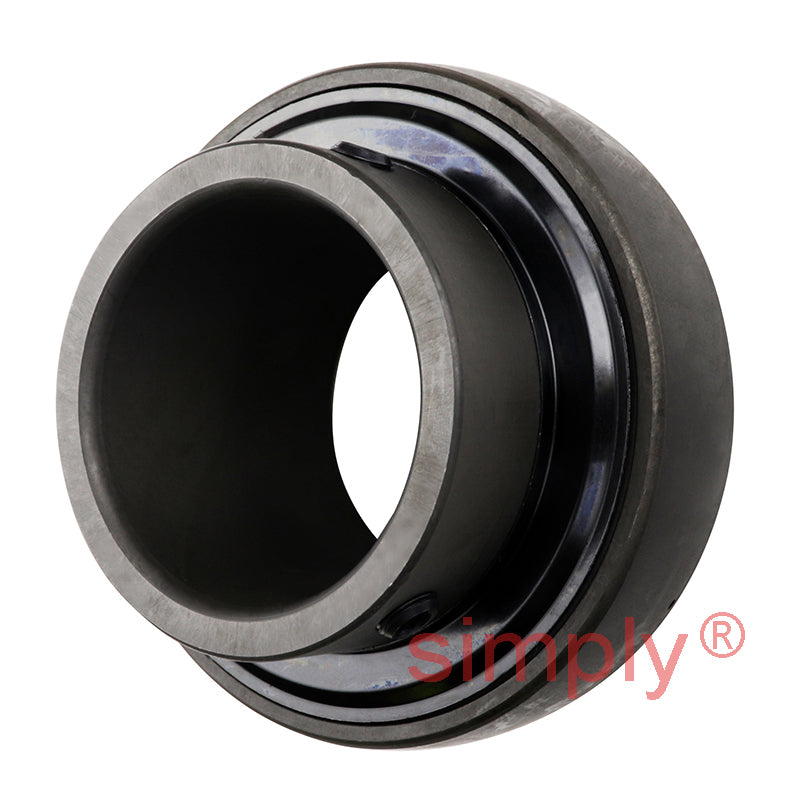

SKF YAR2062FWVA228 Y Bearing Insert for High Temperature Applications with Graphite Cage and Grub Screw Location 30x62x38.1mm
SKF YAR2062FWVA228 Y Bearing Insert for High Temperature Applications with Graphite Cage and Grub Screw Location 30x62x38.1mm
Regular price
$216.38
ex VAT
Regular price
Sale price
$216.38
ex VAT
In stock
Price Break
10+
$192.58
19+
$181.76
29+
$179.60
39+
$177.43
49+
$175.27
74+
$173.10
99+
$162.29
199+
$160.12
249+
$157.96
499+
$155.79
999+
$151.47
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| B | 38.1mm |
| C | 18mm |
| d1 | 39.7mm |
| s1 | 22.2mm |
| r1r2 min | 0.6mm |
| Dynamic load C | 19.5 |
| Static load Co | 11.2 kN |
| Weight | 0.28 kg |
