SKU: YAR212-2FW/VA201-SKF

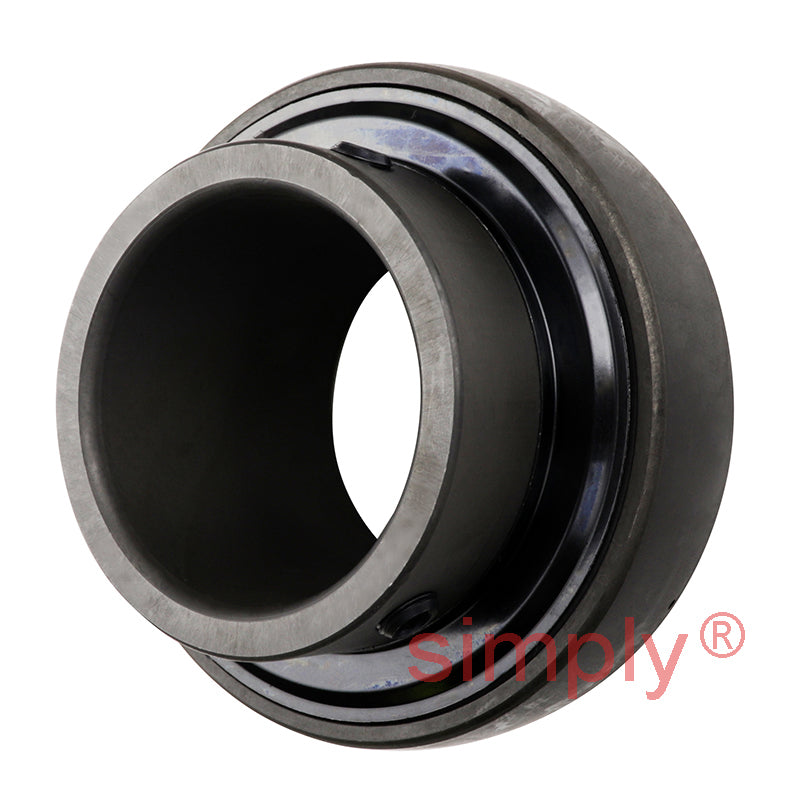

SKF YAR2122FWVA201 Y Bearing Insert for High Temperature Applications with Pressed Steel Cage and Grub Screw Location 60x110x65.1mm
SKF YAR2122FWVA201 Y Bearing Insert for High Temperature Applications with Pressed Steel Cage and Grub Screw Location 60x110x65.1mm
Regular price
$398.91
ex VAT
Regular price
Sale price
$398.91
ex VAT
In stock
Price Break
10+
$355.03
19+
$335.08
29+
$331.10
39+
$327.11
49+
$323.12
74+
$319.13
99+
$299.18
199+
$295.19
249+
$291.20
499+
$287.22
999+
$279.24
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B | 65.1mm |
| C | 26mm |
| d1 | 75.6mm |
| s1 | 39.7mm |
| r1r2 min | 1.5mm |
| Dynamic load C | 52.7 |
| Static load Co | 36 kN |
| Weight | 1.3 kg |
